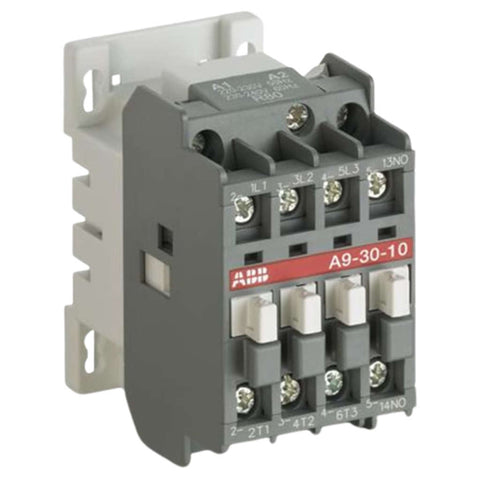

ABB AC Type Contactor Three Pole Size:1 A9-30 Series
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
A 9 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC
-
The contactors can also be used for many other applications such as isolation, capacitor switching, lighting
-
The A... series 1-stack 3-pole contactors are of the block type design
-
Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks
-
Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available
-
Product Type : Contactor
-
Rated Frequency : 50/60 Hz
-
Operation Type : AC
-
Rated Operational Voltage : 690 V
-
Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 26 A
-
Maximum Electrical Switching Frequency : AC-1 600 cycles per hour , AC-2 / AC-4 300 cycles per hour , AC-3 1200 cycles per hour
-
Rated Impulse Withstand Voltage (Uimp) : 8 kV
-
Maximum Mechanical Switching Frequency : 3600 cycles per hour
-
Degree of Protection : acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
-
Maximum Operating Altitude Permissible : 3000 m
-
Terminal Type : Screw Terminals
-
Product Net Width : 44 mm
-
Product Net Depth / Length : 74 mm
-
Product Net Height : 74 mm
-
Product Net Weight : 0.34 kg
Product Specification
Product Id |
Description |
Rated Voltage |
1SBL141001R8401 |
A9-30-01 coil 110V 50Hz / 110-120V 60Hz 1NC Contactor A Series |
110-120V |
1SBL141001R8001 |
A9-30-01 coil 220-230V 50Hz / 230-240V 60Hz 1NC Contactor A Series |
220-240V |
1SBL141001R8101 |
A9-30-01 coil 24V 50Hz / 24V 60Hz 1NC Contactor A Series |
24V |
1SBL141001R8601 |
A9-30-01 coil 400-415V 50Hz / 415-440V 60Hz 1NC Contactor A Series |
400-440V |
1SBL141001R8410 |
A9-30-10 coil 110V 50Hz / 110-120V 60Hz 1NO Contactor A Series |
110-120V |
1SBL141001R8010 |
A9-30-10 coil 220-230V 50Hz / 230-240V 60Hz 1NO Contactor A Series |
220-240V |
1SBL141001R8110 |
A9-30-10 coil 24V 50Hz / 24V 60Hz 1NO Contactor A Series |
24V |
1SBL141001R8610 |
A9-30-10 coil 400-415V 50Hz / 415V-440 60Hz 1NO Contactor A Series |
400-440V |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
3 Pole Contactors |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
