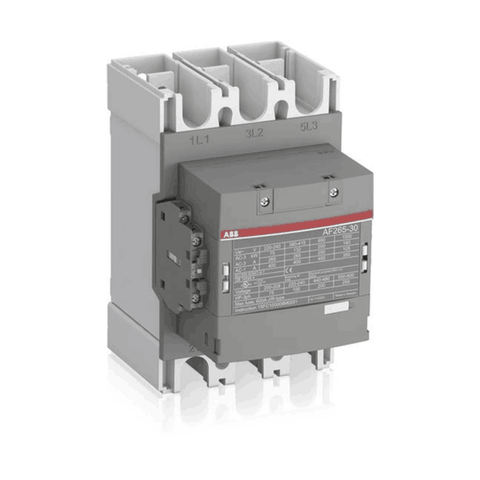

ABB AC Type Contactor Three Pole AF265-30-11

ABB AC Type Contactor Three Pole AF265-30-11


₹ 26,705.00

Quantity

Min Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V

  • Number of Main Contacts NO : 3

  • Number of Main Contacts NC : 0

  • Number of Auxiliary Contacts NO : 1

  • Number of Auxiliary Contacts NC : 1

  • Rated Operational Voltage : Main Circuit 1000 V

  • Rated Frequency (f) : Main Circuit 50/60 Hz

  • Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 350 A

  • Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1 : 8 x Ie AC-3

  • Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3

  • Short-Circuit Protective Devices : gG Type Fuses 500 A

  • Rated Impulse Withstand Voltage (Uimp) : Main Circuit 8 kV

  • Mechanical Durability : 5 million

  • Maximum Mechanical Switching Frequency : 300 cycles per hour

  • Maximum Operating Altitude Permissible : 3000 m

  • Terminal Type : Main Circuit-Bars

  • Product Net Width : 140.0 mm

  • Product Net Depth / Length : 180.0 mm

  • Product Net Height : 225.0 mm

  • Product Net Weight : 4.640 kg

Product Specification

Product Id

Description

Voltage Range

1SFL547002R1111

AF265-30-11 coil 24-60V 50Hz 1NO+1NC Contactor A Series

24-60V

1SFL547002R1211

AF265-30-11 coil 48-130V 50Hz 1NO+1NC Contactor A Series

48-130V

1SFL547002R1311

AF265-30-11 coil 100-250V 50Hz 1NO+1NC Contactor A Series

100-250V

1SFL547002R1411

AF265-30-11 coil 250-500V 50Hz 1NO+1NC Contactor A Series

250-500V
