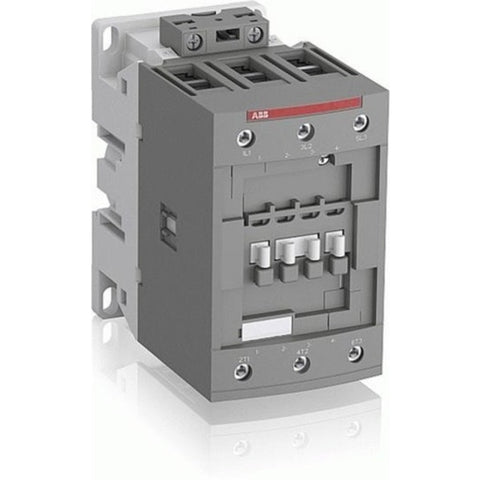

ABB AC Type  Contactor Three Pole AX32-30-01

ABB AC Type Contactor Three Pole AX32-30-01


₹ 1,949.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • AX32 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC

  • These contactors are of the block type design with: – 3 main poles and 1 built-in auxiliary contact

  • Cntrol circuit: AC operated – add-on auxiliary contact blocks for front or side mounting and a wide range of accessories

  • Number of Main Contacts NO : 3

  • Number of Main Contacts NC : 0

  • Number of Auxiliary Contacts NO : 0

  • Number of Auxiliary Contacts NC : 1

  • Rated Operational Voltage : Auxiliary Circuit 690 V , Main Circuit 690 V

  • Rated Frequency (f) : Auxiliary Circuit 50 / 60 Hz , Main Circuit 50 / 60 Hz

  • Rated Impulse Withstand Voltage (Uimp) : 6 kV

  • Maximum Mechanical Switching Frequency : 3600 cycles per hour

  • Terminal Type : Screw Terminals

  • Product Net Width : 54 mm

  • Product Net Depth / Length : 90 mm

  • Product Net Height : 108.3 mm

  • Product Net Weight : 0.667 kg

Product Specification

Rated Voltage

Product Id

Model

24 V

1SBL281074R8101

AX32-30-01 24V AC 50/60Hz

110 V

1SBL281074R8401

AX32-30-01 110V AC 50/60Hz

220-230 V

1SBL281074R8001

AX32-30-01 220-230V AC 50/60Hz

400-415 V

1SBL281074R8601

AX32-30-01 400-415V AC 50/60Hz
