Available
SKU # 1000016108

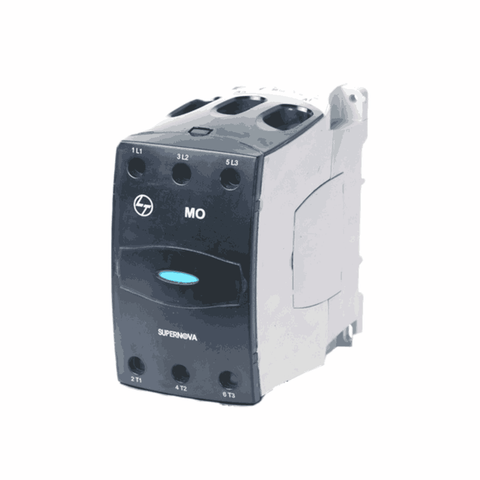

L&T Power Contactors 3 Pole MO Type Frame Size 4 140-225A

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Range from 9A - 300A AC-3
-
Suitable for Lug as well as Lugless termination
-
Conforms to IS / IEC 60947-4-1 & IEC 60947-4-1
-
Range 140A-300A available with conventional / universal AC/DC
-
electronic coil version
-
Built in surge suppressor
-
Common coil for 50 & 60Hz application
-
Low pick-up VA consumption
-
Standardized accessories for 9A-110A and 140A-300A range
-
Compact dimensions saving panel space
-
RoHS compliant
Product Specification
AC3 Rating (A) |
AC1 Rating (A) |
Type |
Auxiliary Contacts |
Model |
140 |
250 |
MO 140 |
2 NO + 2 NC |
CS95000 |
185 |
275 |
MO 185 |
2 NO + 2 NC |
CS95001 |
225 |
275 |
MO 225 |
2 NO + 2 NC |
CS95002 |
