SKU # 1000021913

ABB-DC-Type-Contactor-Three-pole-AF38-1000021913

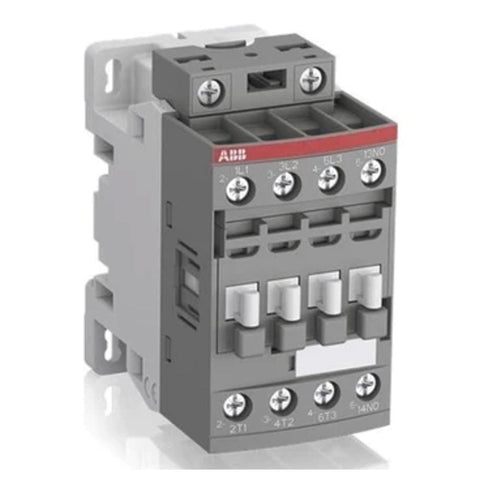

ABB DC Type Contactor Three pole AF38


₹ 5,231.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • AF38 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max

  • Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations

  • One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors

  • The AF... series 1-stack 3-pole contactors are of the block type design

  • Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1)

  • Control circuit : DC operated

  • Number of Main Contacts NO : 3

  • Number of Main Contacts NC : 0

  • Number of Auxiliary Contacts NO : 0

  • Number of Auxiliary Contacts NC : 0

  • Standards : IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14

  • Rated Operational Voltage : Main Circuit 690 V

  • Rated Frequency (f) : Main Circuit 50 / 60 Hz

  • Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 50 A

  • Rated Impulse Withstand Voltage (Uimp) : 6 kV

  • Maximum Mechanical Switching Frequency : 3600 cycles per hour

  • Terminal Type : Screw Terminals

  • Product Net Width : 45 mm

  • Product Net Depth / Length : 86 mm

  • Product Net Height : 86 mm

  • Product Net Weight : 0.31 kg

Product Specification

Rated Voltage

Product ID

Description

24-60V

1SBL297001R1100

AF38-30-00-11 24-60V50/60HZ 20-60VDC Contactor

48-130V

1SBL297001R1200

AF38-30-00-12 48-130V50/60Hz-DC contactor

100-250V

1SBL297001R1300

AF38-30-00-13 100-250V50/60Hz-DC contactor

250-500V

1SBL297001R1400

AF38-30-00-14 250-500V50/60Hz-DC contactor
