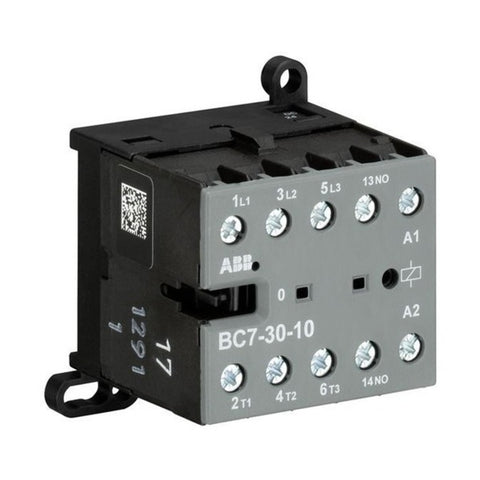

ABB DC Type Mini Contactor Three Pole BC7-30-10


₹ 1,243.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The BC7-30-10 mini contactor is a compact 3 pole contactor with 1 auxiliary contact and screw terminals

  • They are ideally suited for applications where reliability is a must and space is at a premium

  • Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals

  • Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail or wall mounting

  • Number of Poles : 4

  • Mini Contactor Type : Mini Contactor

  • Rated Insulation Voltage (Ui) : 690 V , acc. to UL/CSA 600 V

  • Number of Main Contacts NC : 0

  • Number of Main Contacts NO : 3

  • Rated Short-time Withstand Current (Icw) : at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 64 A

  • Number of Auxiliary Contacts NC : 0

  • Number of Auxiliary Contacts NO : 1

  • Conventional Free-air Thermal Current (Ith) : Main Circuit 20 A

  • Mechanical Durability : 10000000 cycle

  • Product Net Width : 52.5 mm

  • Product Net Height : 57.5 mm

  • Product Net Depth / Length : 46.5 mm

  • Product Net Weight : 0.175 kg

Product Specification

Type

Product ID

Rated Voltage

BC7-30-10 coil 24V DC

GJL1313001R0101

24V DC

BC7-30-10 coil 110..125V DC

GJL1313001R0104

110..125V DC

BC7-30-10 coil 220..240V DC

GJL1313001R0105

220..240V DC
