SKU # 1000016935

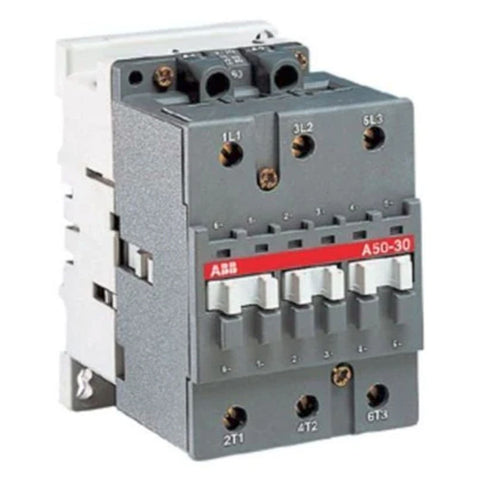

ABB AC Type Contactor Three Pole Size:3 A50-30-00

Visit the ABB Store

₹ 6,710.00

Quantity



Pack Qty : 1

Delivery Availability

Estimated Dispatch Within 2 Days

Offers and Coupons

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

A50 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC / 1000 V AC or 220 V DC
The contactors can also be used for many other applications such as isolation, capacitor switching, lighting
The A... series 1-stack 3-pole contactors are of the block type design
Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks
Control circuit: AC operated with laminated magnet circuit
Accessories: a wide range of accessories is available
Number of Main Contacts NO : 3
Number of Main Contacts NC : 0
Number of Auxiliary Contacts NO : 0
Number of Auxiliary Contacts NC : 0
Product Net Width : 70 mm
Product Net Depth / Length : 108 mm
Product Net Height : 110 mm
Product Net Weight : 1.16 kg
Rated Operational Voltage : Main Circuit 1000 V
Conventional Free-air Thermal Current (I_th) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 100 A
Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1 : 8 x Ie AC-3
Rated Making Capacity AC-3 acc. to IEC 60947-4-1 : 10 x Ie AC-3
Short-Circuit Protective Devices : gG Type Fuses 100 A
Rated Insulation Voltage (U_i) : acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U_imp) : 8 kV
Mechanical Durability : 10 million
Maximum Mechanical Switching Frequency : 3600 cycles per hour
Rated Control Circuit Voltage (U_c) : 50 Hz 110 V , 60 Hz 110 ... 120 V
Terminal Type : Screw Terminals

Product Specification

Product Id	Description	Rated Voltage
1SBL351001R8400	A50-30-00 110V CONTACTOR	110 V
1SBL351001R8000	A50-30-00 220-230V 50HZ / 230-240V 60HZ	220-240 V
1SBL351001R8100	A50-30-00 024V	24 V
1SBL351001R8600	A50-30-00 400-415V	400-415 V

Other Details

Dimension (CM) - L x B x H
Unit of Measurement
Weight	kg
Generic Type	3 Pole Contactors
Manufacturer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Packer Details	ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444
Country of Origin	India
