SKU # 1000139325

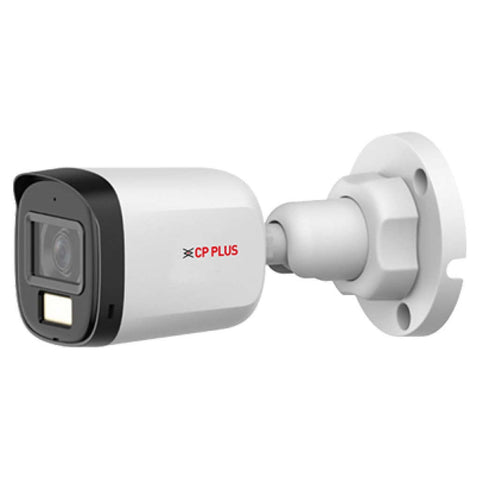

CP Plus 2.4MP Built-In-Mic Bullet Camera CP-URC-TC24PL3C
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
2.4MP PS CMOS Image Sensor
-
Maximum Outputs 2.4MP(1920x 1080)@30fps
-
DWDR, Day/Night (ICR), 2D DNR, BLC
-
3.6mm Lens (2.8mm, 6mm Optional)
-
IR Range of 30 Mtrs., Smart IR, IP67
-
Support Built-in Mic
-
4 Signals over 1 Coaxial Cable
-
Functions
-
True Day/Night (ICR)
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
Built-In Mic
-
The built-in microphone captures high-quality audio, adding an extra layer of security by recording sound along with video, which is essential for comprehensive surveillance
-
Long Distance Transmission
-
Long-distance transmission capability allows video signals to be transmitted over extended distances without quality loss, ensuring reliable and clear footage from remote locations
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Bullet Camera |
|
Product Model |
CP-URC-TC24PL3C / CP-URC-TC24PL3C-0360 |
|
Image Sensor |
2.4MP PS CMOS Image Sensor |
|
Minimum Illumination |
0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
|
Effective Pixels |
1920 (H) × 1080 (V) |
|
Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
|
Shutter Speed |
PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s |
|
White Balance |
Auto |
|
Maximum Aperture |
F2.0 |
|
Lens Mount |
M12 |
|
Lens |
3.6mm Lens (2.8mm, 6mm Optional) |
|
DORI Distance |
Lens 3.6mm: 55.0 m (Detect), 22.0 m (Observe), 11.0 m (Recognize), 5.5 m (Identify) Lens 2.8mm: 44.7 m (Detect), 17.9 m (Observe), 8.9 m (Recognize), 4.5 m (Identify) Lens 6mm: 102.9 m (Detect), 41.1 m (Observe), 20.6 m (Recognize), 10.3 m (Identify |
|
Lens Type |
Fixed-focal |
|
Gain Control(AGC) |
Auto |
|
Close Focus Distance |
3.6 mm: 0.8 m, 2.8 mm: 0.5 m, 6 mm: 2.4 m |
|
Angle Of View |
3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, D: 117°; 6 mm: H: 43°, V: 24°, D: 50° |
|
S/N Ratio |
>65 dB |
|
Back Light Compensation |
BLC/DWDR |
|
Video Output |
Video output choices of CVI/ TVI/ AHD/ CVBS by one BNC port |
|
Resolution |
2.4MP (1920 × 1080), 960H (960 × 576/ 960 × 480) |
|
Frame Rate |
CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H |
|
Noise Reduction |
2D DNR |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
IR Control |
Auto, Manual |
|
IR |
IR Range of 30 Mtr., |
|
Audio |
Built-in Mic |
|
IR Number |
2 (IR light) |
|
IR Mode |
Smart IR |
|
Iris Control |
Fixed |
|
Power Source |
12 VDC ± 30% |
|
Power Consumption |
Maximum 2.8 W (12 VDC, IR on) |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
<95% (RH), non-condensing |
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Storage Humidity |
<95% (RH), non-condensing |
|
Weatherproof Standard |
IP67 |
|
Casing |
Plastic |
|
Dimension |
146.1 × 70 × 69.8mm |
|
Weight |
0.15 kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
16.5 x 7.5 x 7.5 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.350 kg |
|
Generic Name |
Bullet Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
