SKU # 1000139792

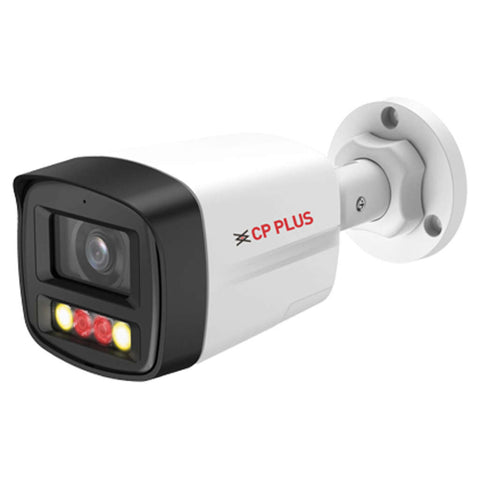

CP Plus 4MP Dual Light Bullet Camera CP-UNC-TA41L3B-D-LQ-0360
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
1/2.8" 4MP PS CMOS Image Sensor (0.9071 centimeters)
-
Maximum 4MP (2688 × 1520)/ (2560 × 1440)@1-25/30fps
-
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
-
Support Triple stream
-
Support Built-in Mic, Built-in speaker
-
3.6mm fixed Lens
-
WDR (120dB), Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking
-
IR Range of 30 Mtr., Warm Light Range of 30 Mtr., PoE, IP67
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
-
This camera has been designed with the latest and most efficient innovation among the standard video compression designs
-
Smart encoding algorithms developed by CP PLUS help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs
-
It enhances video coding efficiency while providing high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame
-
CP PLUS cameras with Power over Ethernet (PoE) technology offer a simple and efficient installation by using a single Ethernet cable to deliver both power and data
-
This eliminates the need for separate power adapters, reduces cable clutter, and ensures a cleaner setup
Product Specification
|
Brand |
CP Plus |
|
Product Type |
CCTV Camera |
|
Product Model |
CP-UNC-DA41L3B-D-LQ |
|
Image Sensor |
1/2.8 |
|
Effective Pixels |
2688 (H) × 1520 (V) |
|
Minimum Illumination |
0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) |
|
Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
|
Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
RAM |
128 MB |
|
White Balance |
Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
|
ROM |
128 MB |
|
Gain Control (AGC) |
Auto/Manual |
|
Lens Type |
Fixed-focal |
|
Maximum Aperture |
F1.4 |
|
Lens Mount |
M12 |
|
Close Focus Distance |
1.5 m |
|
DORI Distance |
78.0 m (Detect), 31.2 m (Observe), 15.6 m (Recognize), 7.8 m (Identify) |
|
Lens |
3.6mm fixed Lens |
|
S/N Ratio |
>58dB |
|
Back Light Compensation |
BLC/ HLC/ WDR(120dB) |
|
Video Compression |
Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream) |
|
IR Number |
2 IR LED, 2 Warm light |
|
IR |
IR Range of 30 Mtr. |
|
Warm Light |
Warm Light Range of 30 Mtr. |
|
Smart IR |
Support |
|
Angle of view |
H: 78°, V: 42°, D: 92° |
|
Smart search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
|
Resolution |
4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240) |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Stream Capability |
Triple stream |
|
Frame Rate |
Main stream: 4MP (2688 × 1520)/ (2560 × 1440)@1-25/30fps Sub stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps Sub stream 2: D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps |
|
Video Format |
PAL/NTSC |
|
OSD |
Camera title, Date & Time |
|
Bit Rate Control |
CBR/VBR |
|
Bit Rate |
H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps |
|
Protocol |
SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Audio |
Built-in Mic |
|
IMD (Intelligent motion detection) |
Support the classification and accurate detection of human and vehicle |
|
IR Control |
Auto, Manual |
|
Ethernet |
RJ-45 (10/100 Base-T) |
|
Iris Control |
Fixed |
|
Smart Illumination |
Support |
|
Cyber Security |
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
|
User/ Host |
6 (Total bandwidth: 36 M) |
|
Browser |
IE, Chrome, Firefox |
|
Image Rotation |
0°/180° |
|
Certificates |
ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
|
Power Source |
12 VDC/PoE (802.3af) |
|
Power Consumption |
Basic: 1.9 W (12 VDC); 2.4 W (PoE) Maximum: 11.5 W (12 VDC), 13.1 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker) |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
≤95% (RH), non-condensing |
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Storage Humidity |
≤95%(RH), non-condensing |
|
Casing |
Metal + Plastic |
|
Dimension |
197.9 mm × 80.2 mm × 76.2 mm |
|
Weight |
350g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
19.79 x 8.02 x 7.62 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.35 kg |
|
Generic Name |
Bullet Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
