SKU # 1000139790

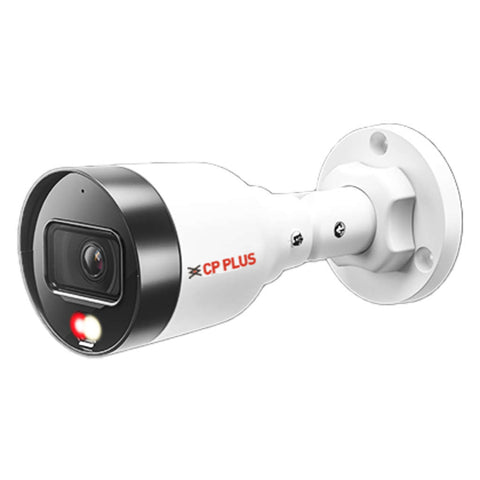

CP Plus 4MP Built-In-Mic Dual Light Bullet Camera CP-UNC-TA41L3C-D-LQ-0360
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters)
-
Maximum 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30
-
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
-
Support Triple stream
-
WDR (120dB), Day/Night(ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking
-
IR Range of 30 Mtr., Warm Light Range of 30 Mtr.
-
3.6mm fixed Lens
-
Support Built-in Mic, PoE,
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
-
This camera has been designed with the latest and most efficient innovation among the standard video compression designs
-
Smart encoding algorithms developed by CP PLUS help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs
-
It enhances video coding efficiency while providing high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame
-
CP PLUS cameras with Power over Ethernet (PoE) technology offer a simple and efficient installation by using a single Ethernet cable to deliver both power and data
-
This eliminates the need for separate power adapters, reduces cable clutter, and ensures a cleaner setup
Product Specification
|
Brand |
CP Plus |
|
Product Type |
CCTV Camera |
|
Product Model |
CP-UNC-TA41L3C-D-LQ |
|
Image Sensor |
1/2.9 |
|
Effective Pixels |
2688 (H) × 1520 (V) |
|
Minimum Illumination |
0.06 lux@F1.6 (Color, 30 IRE), 0.006 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on) |
|
Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
|
Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
White Balance |
Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
|
ROM |
128 MB |
|
DORI Distance |
Lens 3.6 mm: 85.4 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.5 m (Identify) |
|
Gain Control (AGC) |
Auto/ Manual |
|
Lens Type |
Fixed-focal |
|
Maximum Aperture |
F1.6 |
|
Lens Mount |
M12 |
|
Close Focus Distance |
1.7 m |
|
Lens |
3.6mm fixed Lens |
|
IR Number |
1 (Multi-core (IR + warm) light) |
|
IR |
IR Range of 30 Mtr. |
|
Smart Illumination |
Support |
|
IR Control |
Auto, Manual |
|
Angle Of View |
3.6 mm: H: 78°, V: 40°, D: 93° |
|
Back Light Compensation |
BLC/ HLC/ WDR(120dB) |
|
Resolution |
4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288 / 352 × 240) |
|
Video Compression |
Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by sub stream) |
|
Noise Reduction |
2D NR |
|
Motion Detection |
OFF/ON |
|
Video Format |
PAL/NTSC |
|
Stream Capability |
Triple stream |
|
Frame Rate |
Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30 Sub stream 1: 720P( 1280 × 720), D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25 fps/ (704 × 480)@1–30 fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps |
|
Privacy Mask |
8 areas |
|
OSD |
Camera title, Date & Time |
|
Audio Compression |
G.711a, G.711Mu, PCM, G.726, AA |
|
Bit Rate Control |
CBR/ VBR |
|
Bit Rate |
H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps |
|
Protocol |
IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Ethernet |
RJ-45 (10/100 Base-T) |
|
Smart IR |
Support |
|
Image Rotation |
4MP only support 0°/180° 2MP & lower will support 0°/90°180°/270° |
|
User/Host |
6 (Total bandwidth: 36 M) |
|
Browser |
IE, Chrome, Firefox |
|
Iris Control |
Fixed |
|
Certificates |
ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
|
Power Source |
12 VDC/ PoE (802.3af) |
|
Power Consumption |
Basic: 1.6 W (12 VDC), 2.0 W (PoE); Maximum : 3.7 W (12 VDC), 4.7 W (PoE) (H.265 + intelligence on + WDR+ warm light intensity |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
≤95%(RH), non-condensing |
|
Storage Humidity |
≤95%(RH), non-condensing |
|
Dimensions |
162.6 mm × 70 mm× 70 mm |
|
Weight |
220g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
16.26 x 7 x 7 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.22 kg |
|
Generic Name |
Bullet Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
