48 hours

SKU # 1000122414

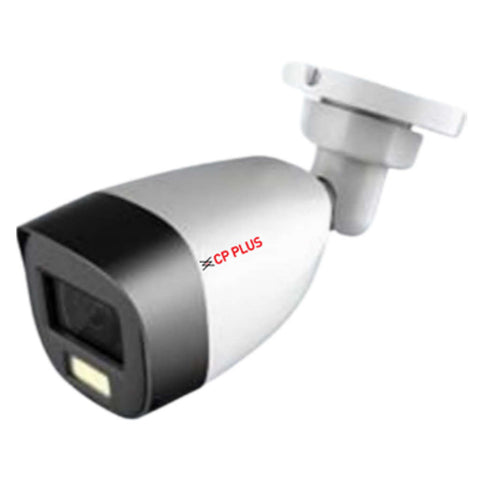

CP Plus 2.4MP Full Color Guard+ Bullet Camera 20Mtr CP-GPC-TA24PL2C-SE

CP Plus 2.4MP Full Color Guard+ Bullet Camera 20Mtr CP-GPC-TA24PL2C-SE

Visit the CP Plus Store
Biggest Festival Sale

₹ 2,100.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons

Biggest Festive Deals

Coupon Image

Use the coupon codes purchase of ₹5,000/- & above

Above ₹5,000 Use
RE100
Above ₹10,000 Use
RE200
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • 1/2.7” 5MP PS CMOS Image Sensor (0.9407cm)

  • Max. 25fps@5MP (16:9 video output)

  • DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC

  • 3.6mm fixed lens (2.8mm optional)

  • IR Range of 20 Mtrs

  • Support Built-in Mic

  • OSD Menu, control over coaxial cable, 2D-DNR

  • CVI/CVBS/AHD/TVI Switchable

  • Functions

  • OSD Menu Support

  • CP PLUS HD analog cameras come with their own menu using which the camera settings can be managed, for instance, the signal type can be changed and other sensor level adjustments be made

  • IR LED

  • Numerous IR LEDs provide detailed images even in very low light conditions

  • These LEDs adjust the infrared intensity for distinct images in dark environments for up to 20mtrs

  • UNI+ Technology

  • CP PLUS Analog HD cameras offer compatibility across all the available technologies - CVBS, TVI, HDCVI, AHD and HDx,making upgrading simple and hassle-free

  • Power Protection

  • With a voltage tolerance range of ±30, these cameras are suitable even in fluctuating power conditions

  • Plug & Play

  • CP PLUS Analog HD cameras are simple to configure and install

Product Specification

Brand

CP Plus

Product Type

Dome Camera

Product Model

CP-USC-DC51PL2C

Image Sensor

1/2.7" 5MP PS CMOS (0.9407cm)

Minimum Illumination

0.02 Lux/F2.0, 30IRE, 0 Lux IR on

Shutter Speed

PAL: 1/25~1/100000s ; NTSC: 1/30~1/100000s

White Balance

Auto / Manual

Lens

3.6mm (2.8mm Optional)

Lens Type

Fixed lens/ Fixed Iris

Resolution

5MP (2880 × 1620); 4MP (2560 × 1440); 1080P (1920 × 1080); 960H (960 × 576/960 × 480)

Mount Type

M12

Maximum Aperture

F2.0

S/N Ratio

>65dB

Close Focus Distance

2.8 mm: 0.8 m ; 3.6 mm: 1.2 m

DORI Distance

2.8mm: 56.0m (Detect) 22.4m(Observe) 11.2m(Recognize) 5.6m(Identify)
3.6mm: 80.0m (Detect) 32m(Observe) 16m(Recognize) 8m(Identify)

Back Light Compensation

BLC/HLC/DWDR

Angle Of View

3.6 mm: 104° × 88° × 46° (D × H × V); 2.8 mm: 125° × 106° × 56° (D × H × V)

Video Streaming

CVI: PAL: 5MP@25fps; 4MP@25fps; 1080P@25fps; NTSC: 5MP@25fps; 4MP@30fps;
1080P@30fps; AHD: PAL: 4MP@25fps; NTSC: 4MP@30fps; TVI: PAL: 4MP@25fps;
NTSC: 4MP@30fps; CVBS: 960H

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

ICR

Auto (ICR)/Manual

IR

IR Range of 20 Mtr

Gain Control

AGC

OSD Menu

Multi-language

Mirror

Off/On

Privacy Masking

Off/On (8 area, rectangle)

Audio

Built-in Mic

Smart IR

Auto/Manual

Power Source

12V DC ±30%

Power Consumption

Maximum 2.7W (12V DC, IR on)

Operating Temperature

-40°C ~ +55°C (-40°F ~ +131°F) / Less than 95% RH

Casing

Plastic

Colour

White

Warranty

As Per Manufacturer Terms And Conditions

Other Details

Dimension (MM) ΦxH

85.4 x 68.8

Unit Of Measurement

1 Piece

Weight

0.100 kg

Generic Name

Dome Camera

Manufacturer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Packer Details

Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526

Country Of Origin

India
