SKU # 1000139789

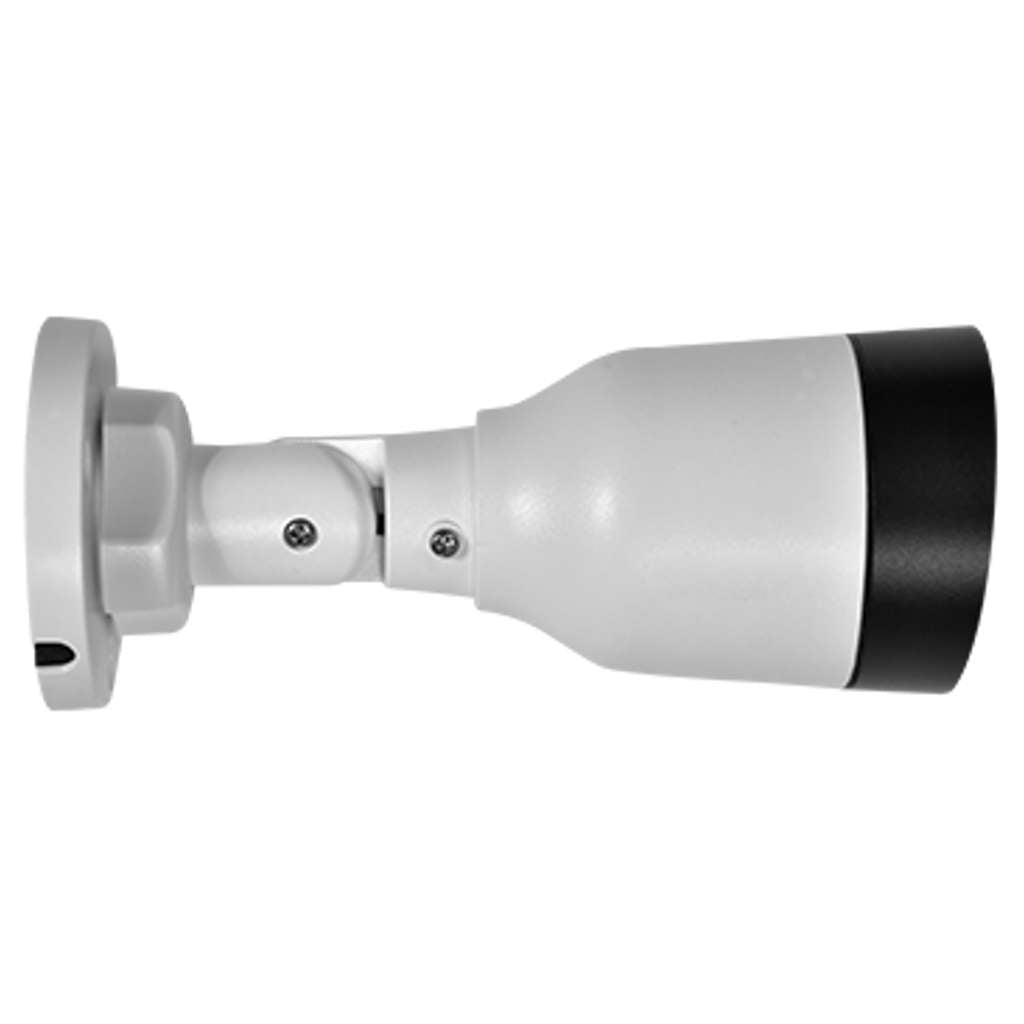

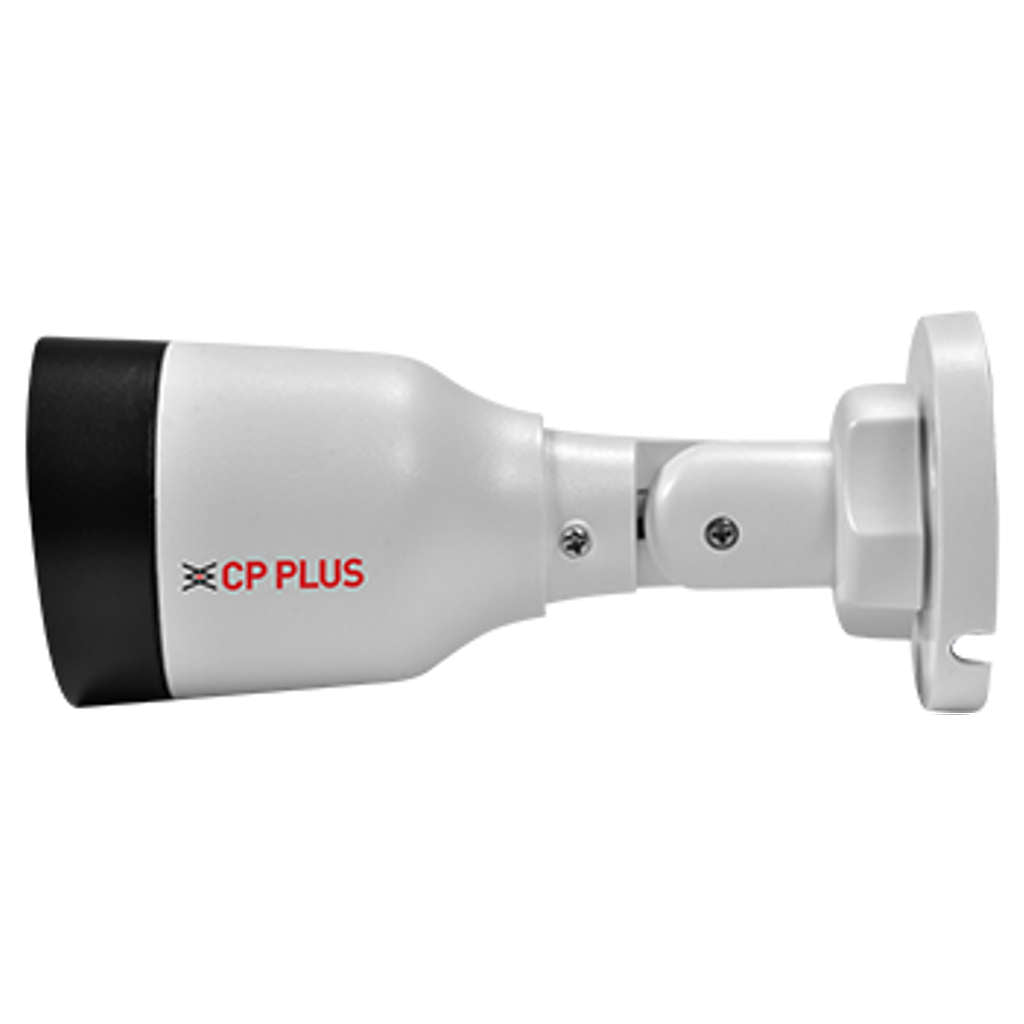

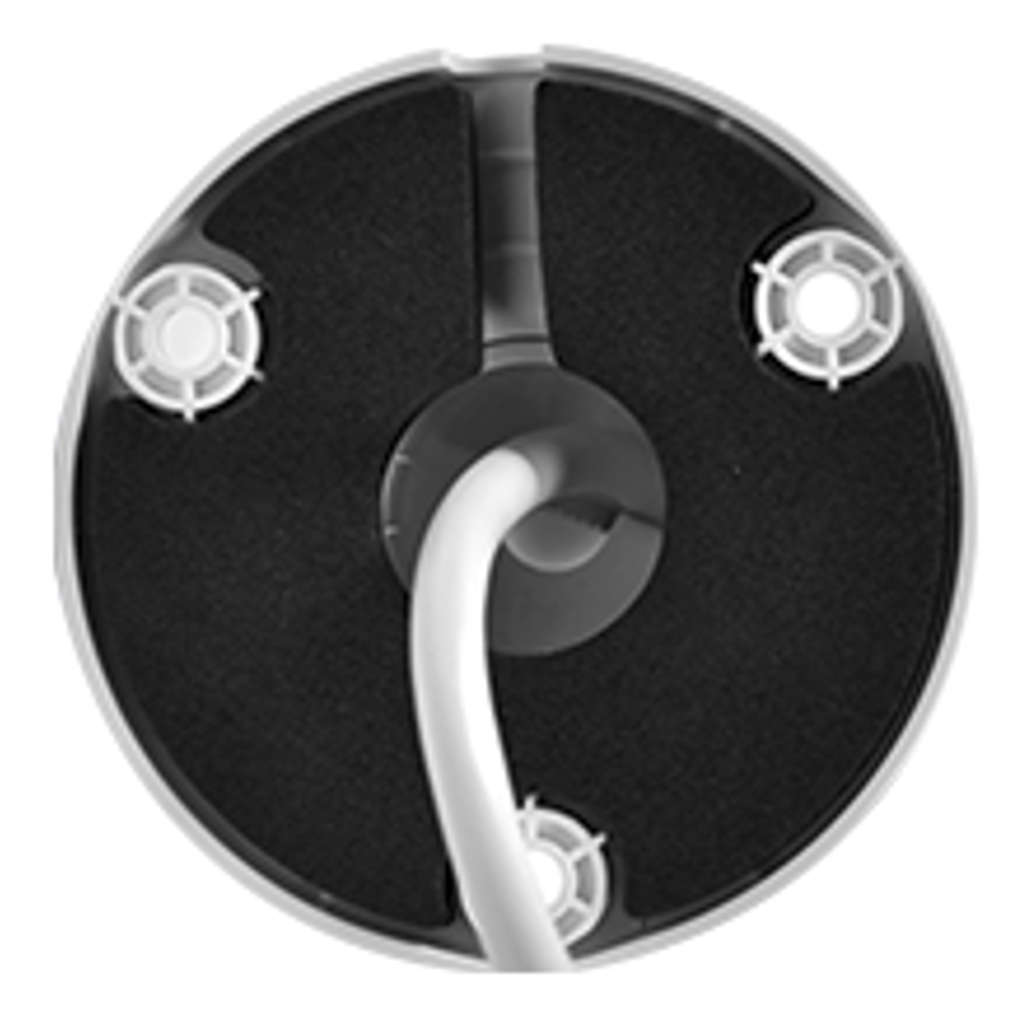

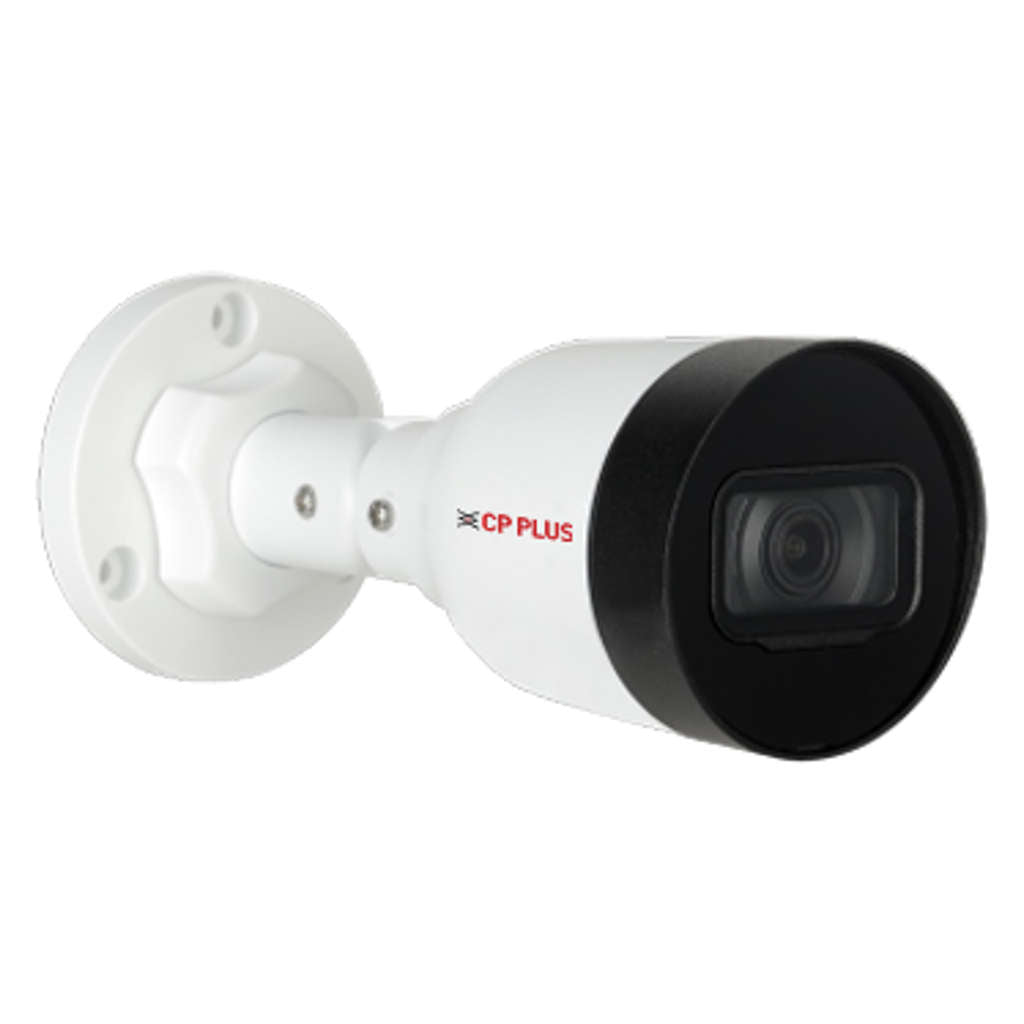

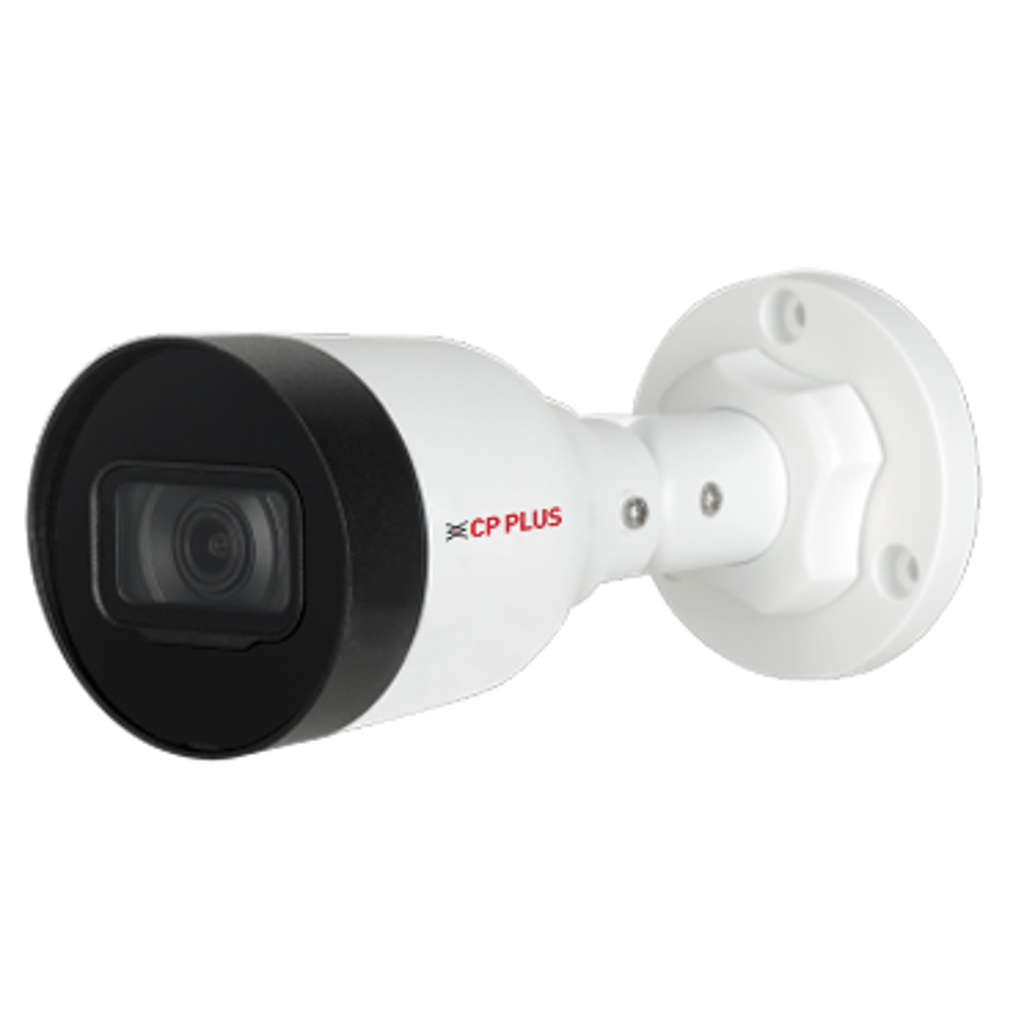

CP Plus 4MP Built-In-Mic Network IR Bullet Camera CP-UNC-TA41L3C-D-Q-0360
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters)
-
Maximum 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30fps
-
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
-
Support Triple stream
-
WDR(120dB), Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC, Digital watermarking
-

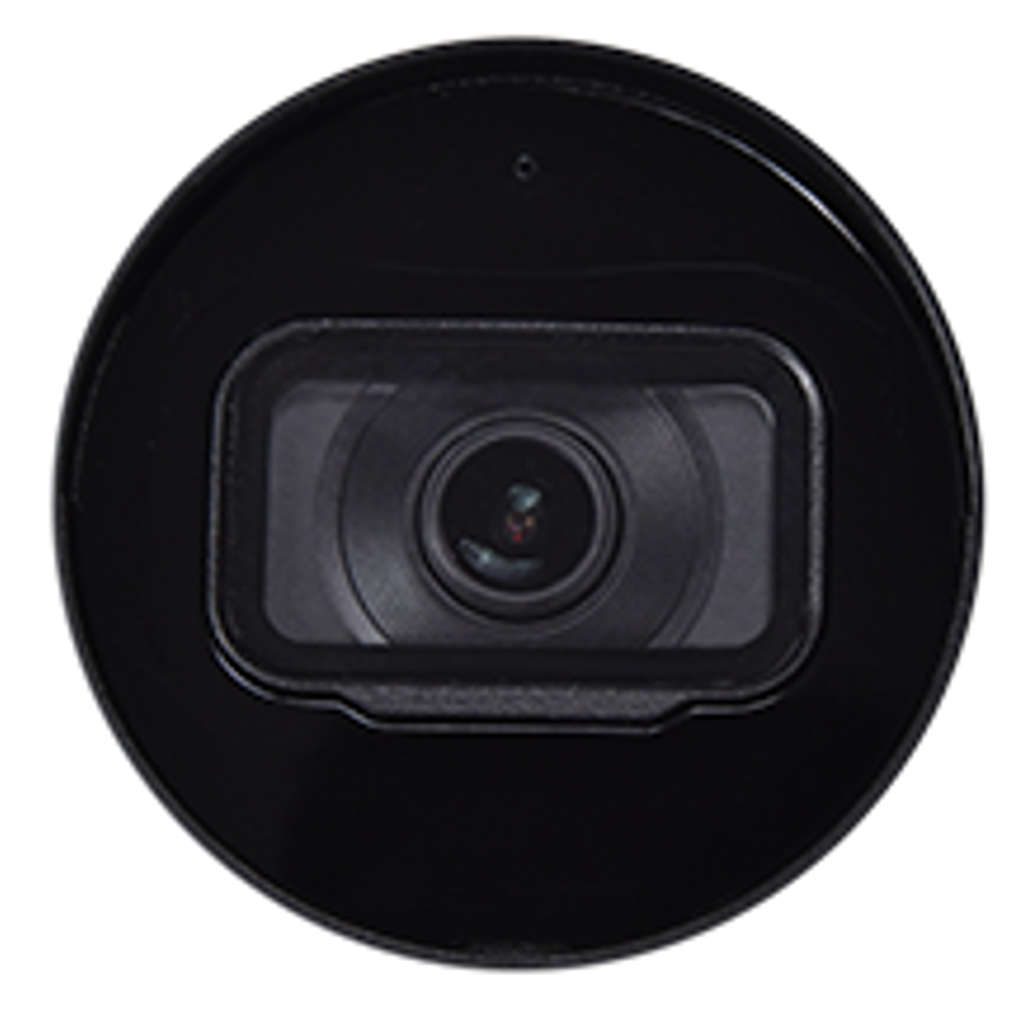

3.6mm fixed Lens
-
Support Built-in Mic
-
IR Range of 30 Mtr., IP67, PoE
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
Smart IR technology can display image in the environment of low illuminance or completely dark environment
-
According to the distance of the targets, the camera adjusts IR LEDs intensity automatically to display the details of the moving target
-
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
-
This camera has been designed with the latest and most efficient innovation among the standard video compression designs
-
Smart encoding algorithms developed by CP PLUS help in saving up to 70% more bandwidth than H.265 along with making it more beneficial for minimizing bandwidth and storage costs
-
It enhances video coding efficiency while providing high resolution and the rate of frame in the video using Intelligent Region Perception to detect motion in each frame
Product Specification
|
Brand |
CP Plus |
|
Product Type |
CCTV Camera |
|
Product Model |
CP-UNC-TA41L3C-D-Q |
|
Image Sensor |
1/2.9” 4MP PS CMOS Image Sensor (0.8758 centimeters) |
|
Effective Pixels |
2688(H) × 1520(V) |
|
Minimum Illumination |
0.03 lux@F2.0 (Color, 30 IRE), 0.003 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
|
Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
|
Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
White Balance |
Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
|
RAM |
128 MB |
|
ROM |
128 MB |
|
DORI Distance |
76.0 m (Detect), 30.4 m (Observe), 15.2 m (Recognize), 7.6 m (Identify) |
|
Gain Control (AGC) |
Auto, Manual |
|
Lens Type |
Fixed-focal |
|
Maximum Aperture |
F2.0 |
|
Lens Mount |
M12 |
|
Close Focus Distance |
1.3 m |
|
Lens |
3.6mm fixed Lens |
|
Video Compression |
Instastream, H.265, H.264, H.264H, H.264B, MJPEG (only supported by the sub stream) |
|
S/N Ratio |
>56dB |
|
Angle of View |
H: 78°, V: 43°, D: 92° |
|
Back Light Compensation |
BLC/ HLC/ WDR (120dB) |
|
IR |
IR Range of 30 Mtr. |
|
Smart IR |
Support |
|
IR Number |
1 IR LED |
|
Resolution |
4MP (2688 x 1520)/ (2560 × 1440), 3MP (2304 × 1296), 2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/ 704 × 480), VGA (640 × 480), CIF (352 × 288/ 352 × 240) |
|
Mirror Function |
Support |
|
Iris Control |
Fixed |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
stream Capability |
Triple stream |
|
Frame Rate |
Main stream: 4MP (2688 × 1520)@1-25/30fps/ (2560 × 1440)@1-25/30fps Sub stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps Sub stream 2: D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps |
|
IR Control |
Auto, Manual |
|
Smart search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
|
Noise Reduction |
3D NR |
|
Video Format |
PAL/NTSC |
|
Privacy Mask |
8 areas |
|
OSD |
Camera title, Date & Time |
|
Audio Compression |
G.711a, G.711Mu, PCM, G.726 |
|
Bit Rate |
H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps |
|
Bit Rate Control |
CBR/VBR |
|
Protocol |
FTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
|
Alarm Event |
Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception |
|
Cyber Security |
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
|
Image Rotation |
4MP only support 0°/180° 2MP & lower will support 0°/90°180°/270° |
|
SDK and API |
Support |
|
Ethernet |
RJ-45 (10/100 Base-T) |
|
Certificates |
ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
|
Power Source |
12 VDC/ PoE (802.3af) |
|
Power Consumption |
Basic: 1.5 W (12 VDC), 1.9 W (PoE); Maximum (H.265 + intelligence on + WDR+ IR intensity): 3.5 W (12 VDC), 4.3 W (PoE) |
|
User/Host |
6 (Total bandwidth: 36 M) |
|
Browser |
IE, Chrome, Firefox |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
≤95%(RH), non-condensing |
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Storage Humidity |
≤95%(RH), non-condensing |
|
Dimension |
162.6 mm × 70 mm × 70 mm |
|
Casing |
Metal |
|
Weight |
220g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
8.55 x 10.9 x 10.9 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.25 kg |
|
Generic Name |
Bullet Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
