SKU # 1000139323

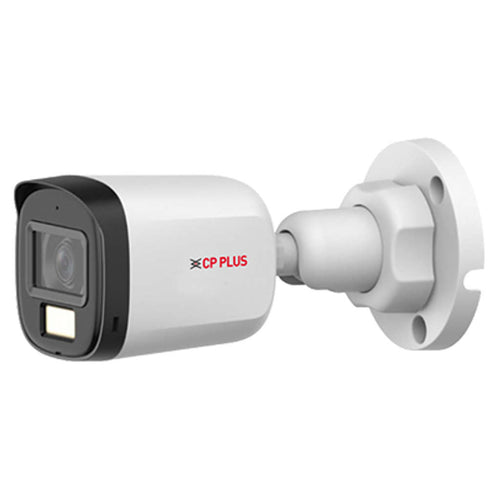

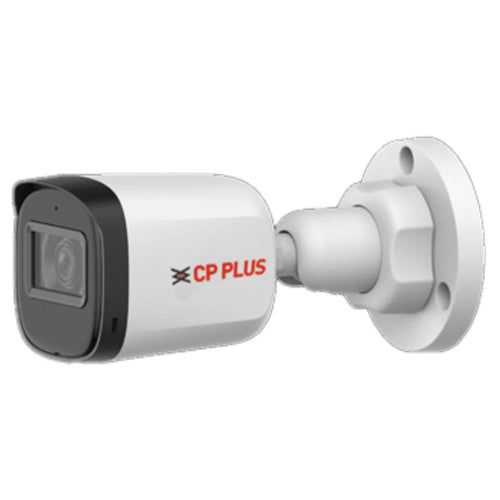

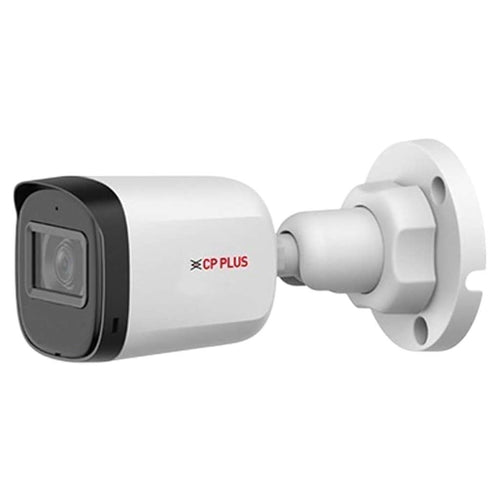

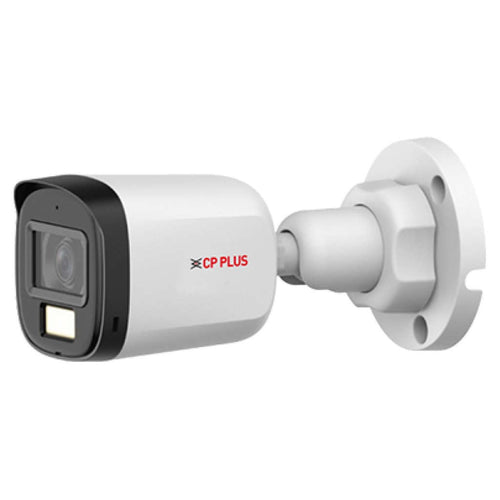

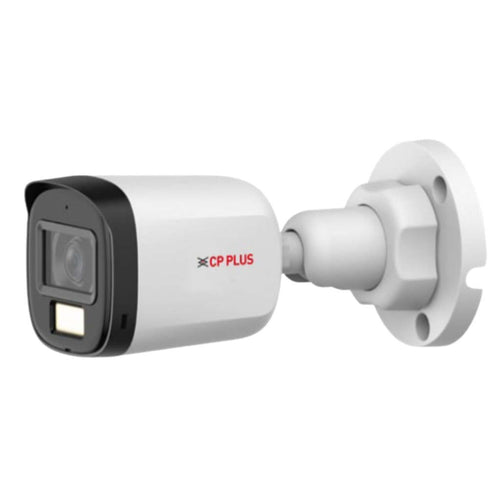

CP Plus 2.4MP IR Bullet Camera CP-URC-TC24PL3
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
2.4MP PS CMOS Image Sensor
-
Max. 2.4MP (1920 x 1080)@25/30fps
-
DWDR, Day/Night (ICR), 2D DNR, AWB, AGC, BLC
-
3.6mm Fixed lens (2.8mm and 6mm optional)
-
IR Range of 30 Mtrs., IP67
-
OSD Menu, control over coaxial cable, 2D-DNR
-
CVI/CVBS/AHD/TVI switchable
-
Functions
-
True Day/Night (ICR)
-
When the scene is too dark, the image is captured by illumi-nating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
IP67
-
The camera passes a series of strict test on dust and soak
-
It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Bullet Camera |
|
Product Model |
CP-URC-TC24PL3 / CP-URC-TC24PL3-0360 |
|
Image Sensor |
2.4MP PS CMOS Image Sensor |
|
Minimum Illumination |
0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
|
Maximum Resolution |
1920 (H) × 1080 (V) |
|
Shutter Speed |
PAL: 1/25 s–1/100000 s, NTSC: 1/30 s–1/100000 s |
|
Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
|
S/N Ratio |
>65 dB |
|
Lens Type |
Fixed-focal |
|
Lens Mount |
M12 |
|
Maximum Aperture |
F2.0 |
|
Angle Of View |
3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, D: 117°; 6 mm: H: 43°, V: 24°, D: 50° |
|
Close Focus Distance |
3.6 mm: 0.8 m; 2.8 mm: 0.5 m; 6 mm: 2.4 m |
|
DORI Distance |
3.6mm– 55.0m (Detect), 22.0m (Observe), 11.0m (Recognize), 5.5m (Identify) 2.8mm– 44.7m (Detect), 17.9m (Observe), 8.9m (Recognize), 4.5m (Identify) 6mm– 102.9m (Detect), 41.1m (Observe), 20.6m (Recognize), 10.3 (Identify) |
|
Back Light Compensation |
BLC/ DWDR |
|
IR Number |
2 (IR light) |
|
Iris Control |
Fixed |
|
White Balance |
Auto |
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
Noise Reduction |
2D DNR |
|
Gain Control(AGC) |
Auto |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Resolution |
1080p (1920 × 1080), 960H (960 × 576/960 × 480) |
|
Frame Rate |
CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H |
|
IR Mode |
Smart IR |
|
IR |
IR Range of 30 Mtr., |
|
IR Control |
Auto/ Manual |
|
Weatherproof Standard |
IP67 |
|
Casing |
Plastic |
|
Operating Temperature |
-40°C ~ +60°C (-40°F ~ +140°F) |
|
Operating Humidity |
<95% (RH), non-condensing |
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Storage Humidity |
<95% (RH), non-condensing |
|
Power Source |
12V DC ±30% |
|
Power Consumption |
Maximum 2.8 W (12 VDC, IR on) |
|
Dimension |
146.1 × 70 × 69.8 mm |
|
Weight |
0.15 kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
16.5 x 7.5 x 7.5 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.350 kg |
|
Generic Name |
Bullet Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
