SKU # 1000139327

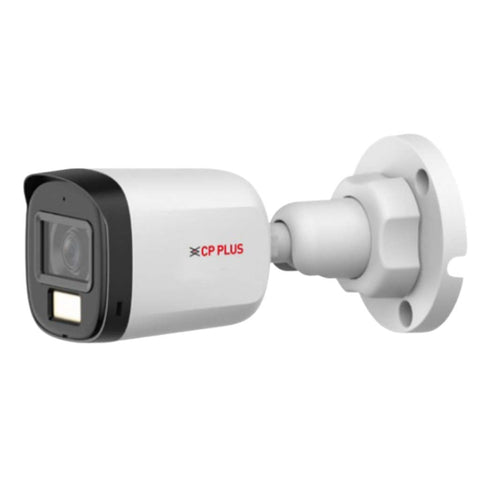

CP Plus 2.4MP Dual Light Bullet Camera CP-URC-TC24PL3C-L
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
1/3.2"2.4 MP PS CMOS Image Sensor (0.7937 centimetres)
-
DWDR, Day/Night (ICR), 2D DNR,BLC, HLC
-
3.6 mm fixed lens (2.8 mm,6 mm optional)
-
IR Range of 30 Mtrs., Warm Light Range of 20 Mtr., Smart IR, IP67
-
Support Built-in Mic
-
Functions
-
Smart Dual IR (Warm Light And IR)
-
Smart Dual IR combines infrared and warm light for superior night vision, ensuring clear images in complete darkness and providing enhanced visibility in low-light conditions
-
True Day/Night (ICR)
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
All-In-1 HD Camera (HDCVI, HDTVI, AHD, CBVS)
-
This feature supports multiple video formats-HDCVI, HDTVI, AHD, and CBVS-making the camera versatile and compatible with various DVRs for seamless integration
-
Active Deterrence
-
Active deterrence includes turning on warm LED lights towards intruders in real-time, enhancing security by preventing potential threats before they escalate
-
*Deterrence will only work with SMD supported DVRs
-
Built-In Mic
-
The built-in microphone captures high-quality audio, adding an extra layer of security by recording sound along with video, which is essential for comprehensive surveillance
-
Long Distance Transmission
-
Long-distance transmission capability allows video signals to be transmitted over extended distances without quality loss, ensuring reliable and clear footage from remote locations
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Bullet Camera |
|
Product Model |
CP-URC-TC24PL3C-L / CP-URC-TC24PL3C-L-0360 |
|
Image Sensor |
1/3.2"2.4 MP PS CMOS Image Sensor (0.7937 centimetres) |
|
Minimum Illumination |
0.02 lux F2.0 (Color, 30 IRE), 0.002 lux F2.0 (B/W, 30 IRE), 0 lux (IR on) |
|
Maximum Resolution |
1920 (H) × 1080 (V) |
|
Angle Adjustment |
Pan: 0°-360° Tilt: 0°-78° Rotation: 0°-360° |
|
Shutter Speed |
PAL: 1/25 s-1/100,000 s NTSC: 1/30 s-1/100,000 s |
|
White Balance |
Auto, Area white balance |
|
Lens Mount |
M12 |
|
Close Focus Distance |
3.6 mm: 0.8 Mtr., 2.8 mm: 0.5 Mtr., 6 mm: 2.4 Mtr |
|
Gain Control(AGC) |
Auto/Manual |
|
Maximum Aperture |
F2.0 |
|
Lens Type |
Fixed-focal |
|
Lens |
3.6 mm fixed lens (2.8 mm,6 mm optional) |
|
Angle Of View |
3.6 mm: H: 80°; V: 43°; D: 94° 2.8 mm: H: 100°; V: 54°; D: 117° 6 mm: H: 43°; V: 24°; D: 50° |
|
DORI Distance |
3.6 mm: Detect: 55.0Mtr., Observe: 22.0Mtr., Recognize: 11.0 Mtr., Identify : 5.5 Mtr. 2.8 mm: Detect: 44.7Mtr., Observe: 17.9 Mtr., Recognize: 8.9 Mtr., Identify: 4.5 Mtr. 6 mm : Detect: 102.9 Mtr. Observe: 41.1 Mtr. Recognize: 20.6 Mtr. Identify: 10.3 Mtr |
|
Back Light Compensation |
BLC/HLC/DWDR |
|
S/N Ratio |
>65dB |
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
Resolution |
2.4MP(1928×1088), 960H (960 × 576/960 × 480) |
|
Video Streaming |
CVI: PAL: 2.4MP@25 fps NTSC: 2.4MP@30 fps , AHD: PAL: 2.4MP@25 fps NTSC: 2.4MP@30 fps , TVI: PAL: 2.4MP@25 fps NTSC: 2.4MP@30 fps, CVBS: PAL: 960H NTSC: 960H |
|
Noise Reduction |
2D DNR |
|
Privacy Masking |
Off/On (8 areas, rectangle) |
|
Audio |
Built-in Mic |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
IR |
IR Range of 30 Mtr |
|
Warm Light |
Warm Light Range of 20 Mtr |
|
Dual LED Number |
2 (Warm light) + 2 (IR light) |
|
IR Control |
Auto, Manual |
|
Iris Control |
Fixed |
|
IR Mode |
Smart IR&WL, WL Mode, IR Mode |
|
Anti-Corrosion Level |
Basic Protection |
|
Mirror Function |
Support |
|
Weatherproof Standard |
IP67 |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
<95% (RH), non-condensing |
|
Power Source |
12 VDC ± 30% |
|
Power Consumption |
Maximum 3.3 W (12 VDC, LED on) |
|
Casing |
Plastic |
|
Dimension |
146.1 × 70 × 69.8 mm |
|
Weight |
0.15 kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
14.9 x 7 x 7 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.350 kg |
|
Generic Name |
Bullet Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
