SKU # 1000139331

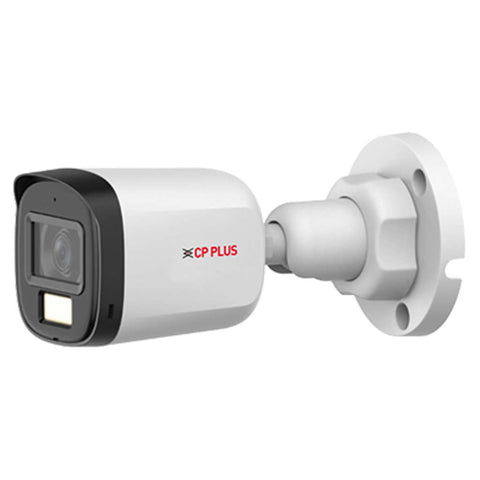

CP Plus 5MP Dual Light Bullet Camera CP-URC-TC51PL3C-L
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
1/2.7” 5MP PS CMOS Image Sensor (0.9407 centimetres)
-
DWDR, Day/Night (ICR), 2D DNR,BLC, HLC
-
3.6mm fixed lens (2.8 mm, 6mm optional)
-
IR Range of 30 Mtrs., Warm Light Range of 20 Mtrs., IP67
-
4 Signals over 1 Coaxial Cable
-
Support Built-in Mic
-
Functions
-
Smart Dual IR (Warm Light And IR)
-
Smart Dual IR combines infrared and warm light for superior night vision, ensuring clear images in complete darkness and providing enhanced visibility in low-light conditions
-
True Day/Night (ICR)
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
All-In-1 HD Camera (HDCVI, HDTVI, AHD, CBVS)
-
This feature supports multiple video formats-HDCVI, HDTVI, AHD, and CBVS-making the camera versatile and compatible with various DVRs for seamless integration
-
Long Distance Transmission
-
Long-distance transmission capability allows video signals to be transmitted over extended distances without quality loss, ensuring reliable and clear footage from remote locations
-
Built-In Mic
-
The built-in microphone captures high-quality audio, adding an extra layer of security by recording sound along with video, which is essential for comprehensive surveillance
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
Bullet Camera |
|
Product Model |
CP-URC-TC51PL3C-L / CP-URC-TC51PL3C-L-0360 |
|
Image Sensor |
1/2.7” 5MP PS CMOS Image Sensor (0.9407 centimetres) |
|
Minimum Illumination |
0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
|
Maximum Resolution |
2880 (H) × 1620 (V) |
|
Shutter Speed |
PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
|
White Balance |
Auto ,Area white balance |
|
Gain Control (AGC) |
Auto |
|
DORI Distance |
3.6 mm: Detect: 76.0 Mtr., Observe-30.4 Mtr., Recognize: 15.2 Mtr., Identify: 7.6 Mtr. 2.8 mm: Detect: 66.0 Mtr., Observe: 26.4 Mtr., Recognize: 13.2 Mtr., Identify: 6.6 Mtr. 6 mm: Detect: 120.0 Mtr. , Observe: 48.0 Mtr. , Recognize: 24.0 Mtr., Identify : 12.0 Mtr. |
|
Lens Type |
Fixed-focal |
|
Maximum Aperture |
F2.0 |
|
Lens Mount |
M12 |
|
Close Focus Distance |
3.6mm: 1.3Mtr., 2.8mm: 1.0Mtr., 6mm: 2.8Mtr. |
|
Lens |
3.6mm, 6mm(2.8mm optional) |
|
Back Light Compensation |
BLC/HLC/DWDR |
|
Angle Adjustment |
Pan: 0°-360° Tilt: 0°-90° Rotation: 0°-360° |
|
Angle Of View |
3.6 mm: H: 92°, V: 48°, D: 109° 6 mm: H: 54°, V: 29°, D: 62° 2.8 mm: H: 106°, V: 56°, D: 125° |
|
S/N Ratio |
>65 dB |
|
Resolution |
5M (2880 × 1620), 4M (2560 × 1440), 2MP (1920 × 1080), 960H (960 × 576/960 × 480) |
|
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
|
Video Streaming |
CVI: PAL: 5M@25 fps, 4M@25 fps, 2M@25 fps, NTSC: 5M@25 fps, 4M@30 fps, 2M@30 fps AHD: PAL: 4M@25 fps, NTSC: 4M@30 fps, TVI: PAL: 4M@25 fps, NTSC: 4M@30 fps, CVBS: PAL: 960H, NTSC: 960H |
|
Noise Reduction |
2D DNR |
|
Privacy Mask |
Off/On (8 areas, rectangle) |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Mirror Function |
Support |
|
IR |
IR Range of 30 Mtr., |
|
IR Control |
Auto, Manual |
|
Warm Light |
Warm Light Range of 20 Mtr. |
|
IR Mode |
Smart IR&WL, WL Mode, IR Mode |
|
Dual LED Number |
2 (Warm light) + 2 (IR light) |
|
Iris Control |
Fixed |
|
Anti-Corrosion Level |
Basic Protection |
|
Audio |
Built-in Mic |
|
Weatherproof Standard |
IP67 |
|
Operating Temperature |
-40 °C to +60 °C (-40 °F to +140 °F) |
|
Operating Humidity |
<95% (RH), non-condensing |
|
Storage Temperature |
-40 °C to +60 °C (-40 °F to +140 °F) |
|
Storage Humidity |
<95% (RH), non-condensing |
|
Power Source |
12 VDC ± 30% |
|
Power Consumption |
Maximum 4.0 W (12 VDC, WLED on) |
|
Casing |
Plastic |
|
Dimension |
146.1 × 70 × 69.8 mm |
|
Weight |
0.17 kg |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
14.6 x 7 x 6.9 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.200 kg |
|
Generic Name |
Bullet Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
