SKU # 1000139787

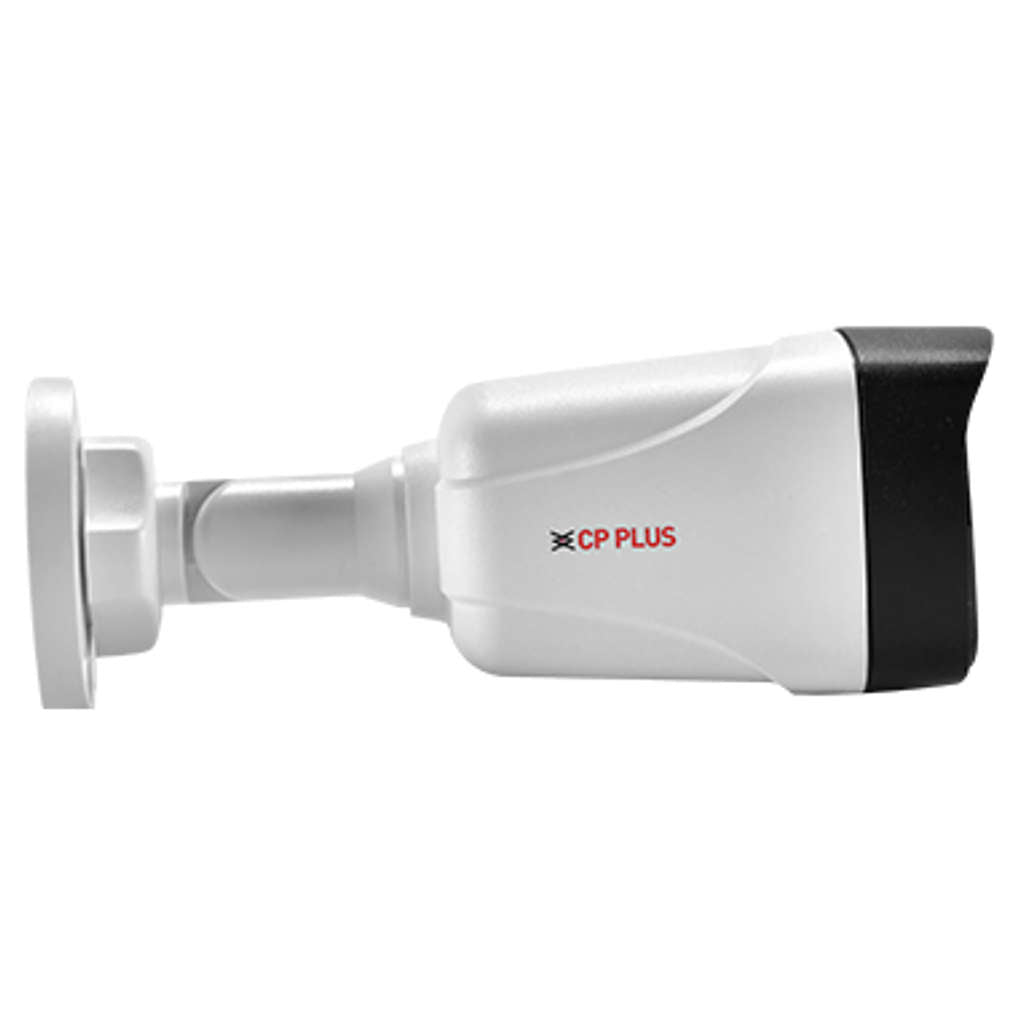

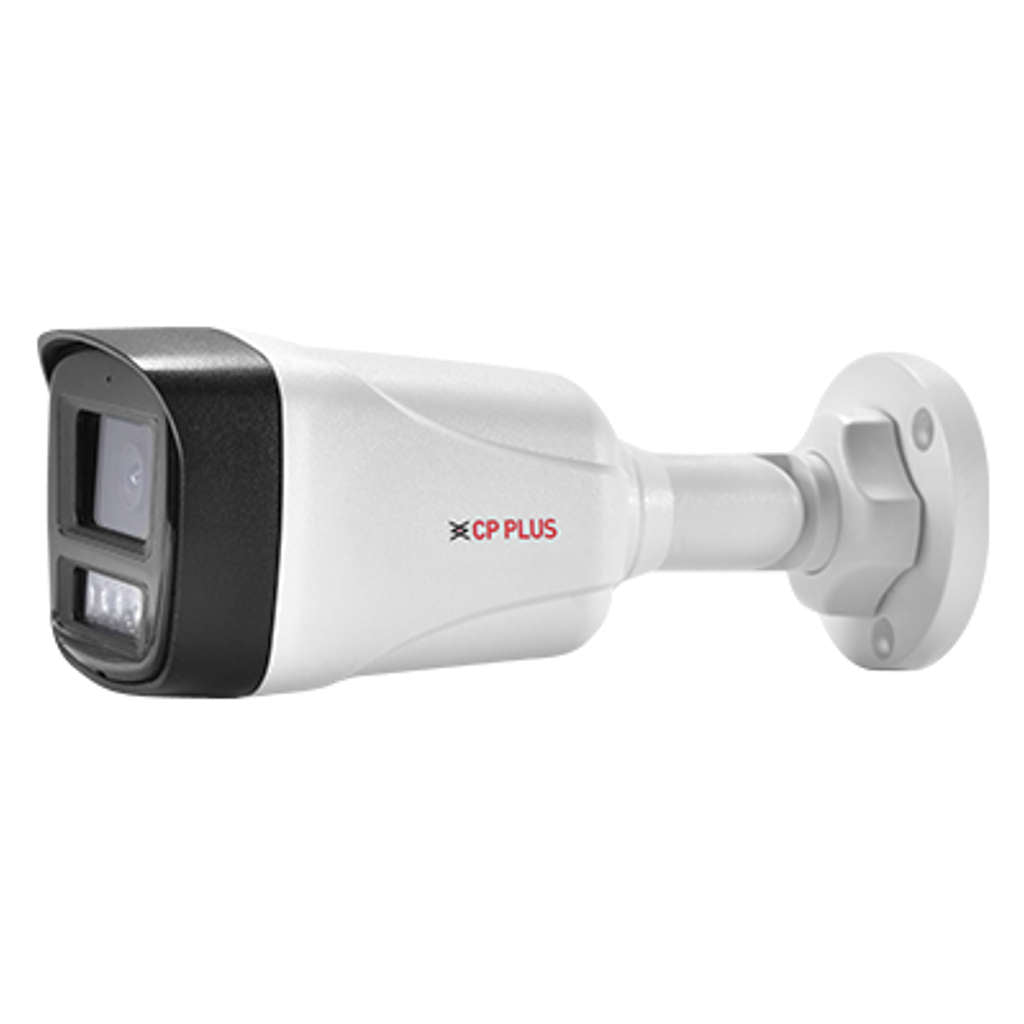

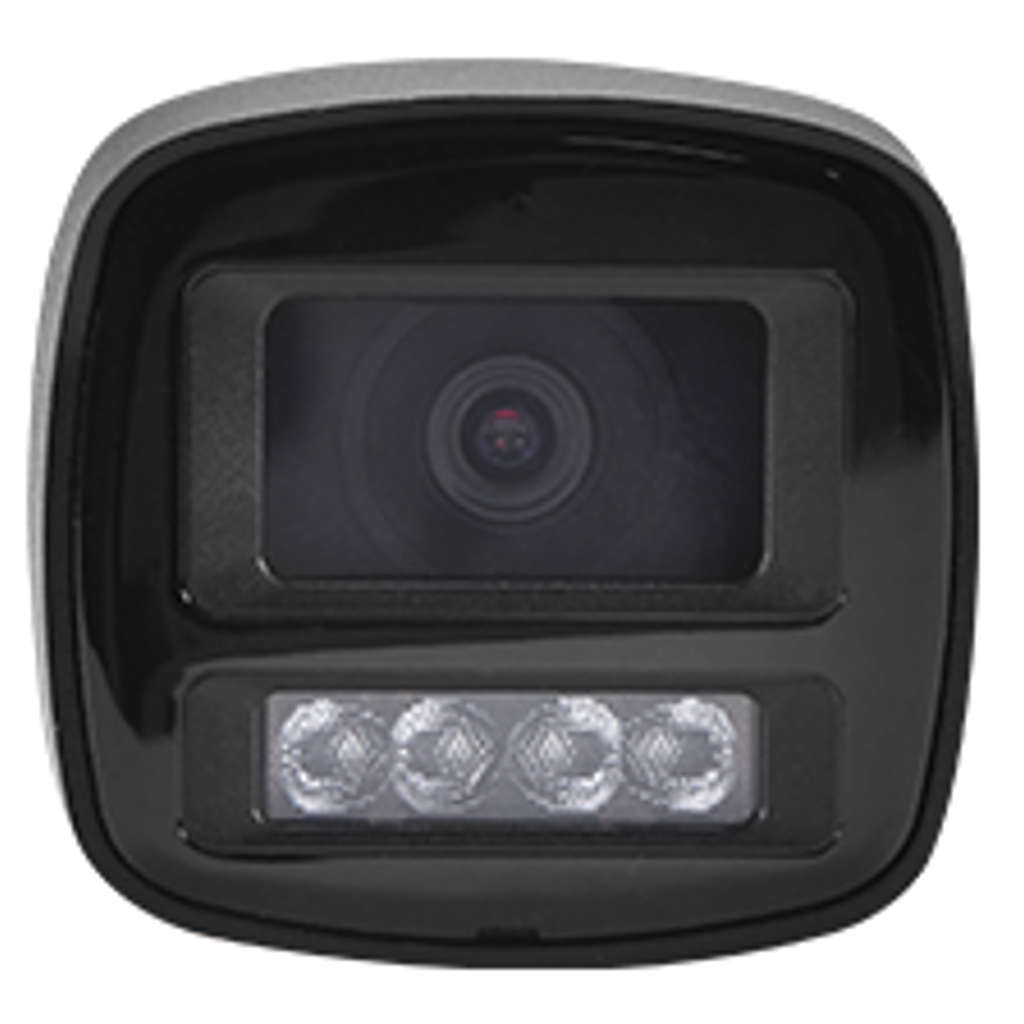

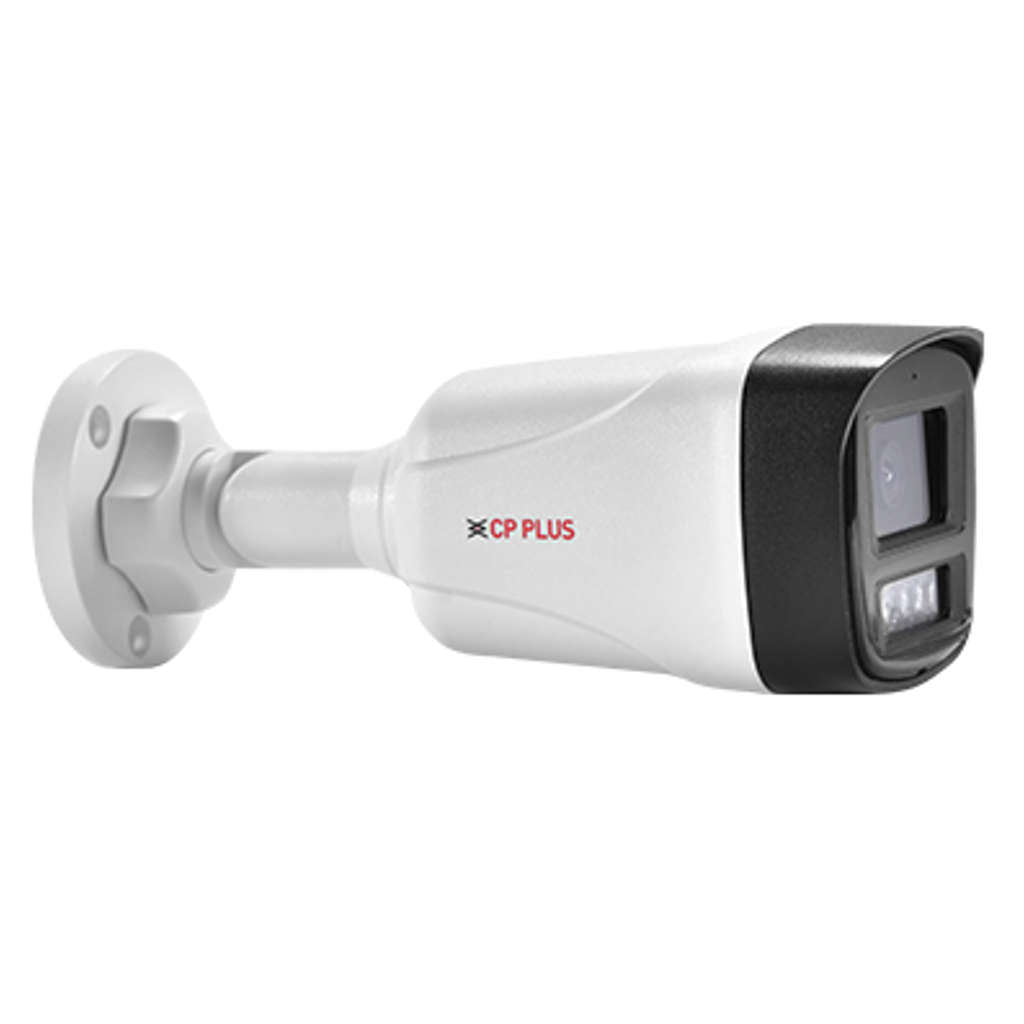

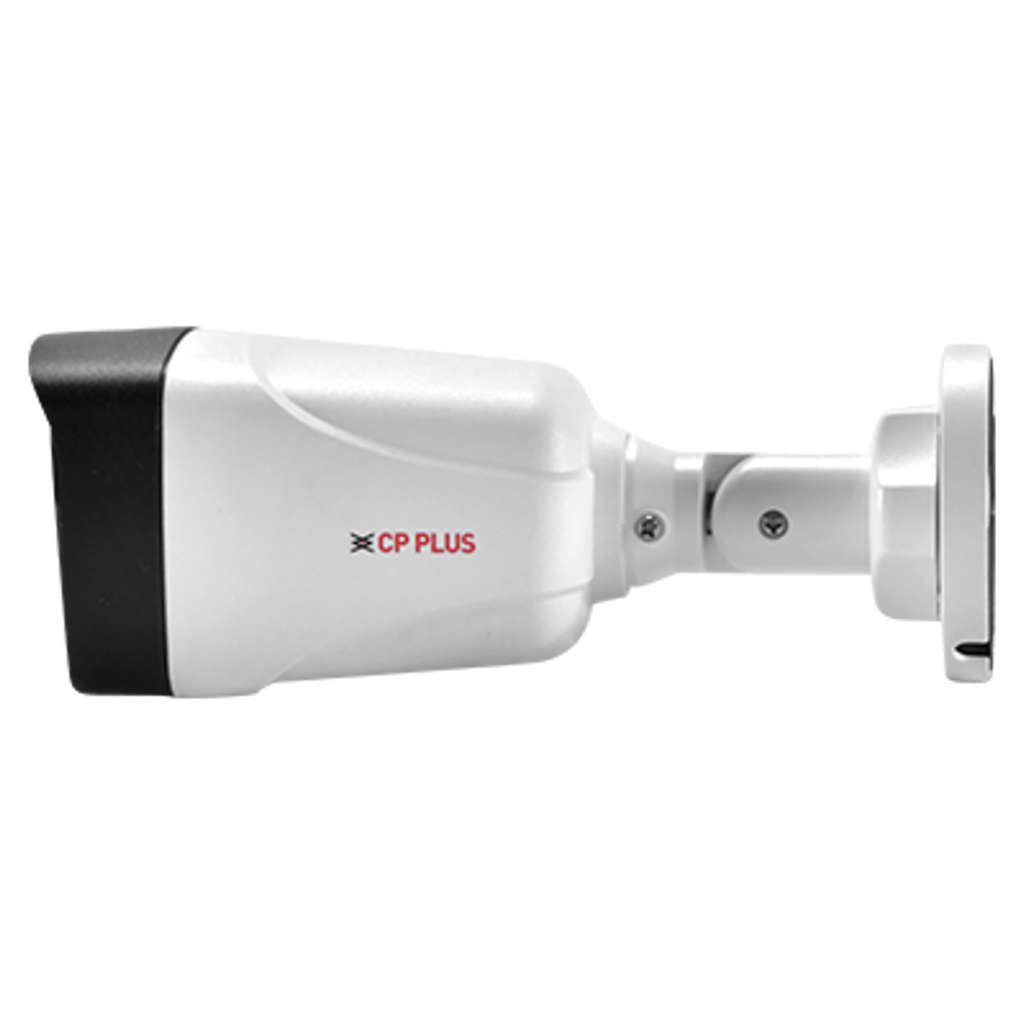

CP Plus 2MP Built-In-Mic Network IR Bullet Camera CP-UNC-TA21L6C-Q-0600
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters)
-
Maximum 2MP (1920 x 1080)@25/30fps
-
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
-
Support Triple stream
-
DWDR, Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC
-
6mm Fixed Lens
-
Support Built-in Mic
-
IR Range of 60 Mtr., IP67, PoE
-
When the scene is too dark, the image is captured by illuminating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
Smart IR technology can display image in the environment of low illuminance or completely dark environment
-
According to the distance of the targets, the camera adjusts IR LEDs intensity automatically to display the details of the moving target
-
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
-
CP PLUS cameras with Power over Ethernet (PoE) technology offer a simple and efficient installation by using a single Ethernet cable to deliver both power and data
-
This eliminates the need for separate power adapters, reduces cable clutter, and ensures a cleaner setup
Product Specification
|
Brand |
CP Plus |
|
Product Type |
CCTV Camera |
|
Product Model |
CP-UNC-TA21L6C-Q |
|
Image Sensor |
1/2.7" 2MP PS CMOS Image Sensor (0.9407 Centimeters) |
|
Minimum Illumination |
0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on) |
|
Effective Pixels |
1920 (H) × 1080 (V) |
|
Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
|
Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
|
White Balance |
Auto, Natural, Street lamp, Outdoor, Manual, Regional custom |
|
RAM |
128 MB |
|
ROM |
128 MB |
|
Close Focus Distance |
2.6 m |
|
Gain Control(AGC) |
Auto, Manual |
|
Maximum Aperture |
F1.4 |
|
Iris Control |
Fixed |
|
Lens Type |
Fixed-focal |
|
Lens |
6mm Fixed Lens |
|
Lens Mount |
M12 |
|
DORI Distance |
85.5 m (Detect), 34.2 m (Observe), 17.1 m (Recognize), 8.6 m (Identify) |
|
IR Number |
4 IR LED |
|
IR |
IR Range of 60 Mtr. |
|
Back Light Compensation |
BLC/ HLC/ DWDR |
|
IR Control |
Auto, Manual |
|
Day/Night |
Auto(ICR)/Color/B/W |
|
Angle of view |
H: 54°, V: 29°, D: 63° |
|
S/N Ratio |
>58dB |
|
Video Compression |
Instastream, H.265, H.264, H.264H, H.264B, MJPEG (only supported by the sub stream) |
|
Resolution |
2MP (1920 ×1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
|
stream Capability |
Triple stream |
|
Frame Rate |
Main stream: 2MP (1920 ×1080)/1.3MP (1280 × 960)/ 720P@25/30fps Sub stream 1: 720p/D1/VAG/CIF@25/30Fps Sub stream 2: D1/VGA/CIF/@25/30fps |
|
Video Format |
PAL/NTSC |
|
Smart IR |
Support |
|
Smart search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
|
Noise Reduction |
3D NR |
|
Motion Detection |
OFF/ON (4 areas, rectangular) |
|
Privacy Mask |
4 areas |
|
ROI |
Support (4 Areas) |
|
Audio |
Built-In Mic |
|
Audio Compression |
G.711a, G.711Mu, PCM, G.726, AAC |
|
Bit Rate |
H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps |
|
Bit Rate Control |
CBR/VBR |
|
Human body Detection |
Support the classification and accurate detection of human |
|
Protocol |
SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast |
|
OSD |
Camera title, Date & Time |
|
Ethernet |
RJ-45 (10/100 Base-T) |
|
SDK and API |
Support |
|
Alarm Event |
Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, IMD (Intelligent motion detection), Security exception |
|
Cyber Security |
AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot |
|
Mirror Function |
Support |
|
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower) |
|
Browser |
IE, Chrome, Firefox |
|
User/Host |
6 (Total bandwidth: 36 M) |
|
Certificates |
ISO 9001: 2015, ISO 20000-1 : 2018, CE, FCC and RoHS, BIS, STQC approved compliance report |
|
Weatherproof Standard |
IP67 |
|
Power Source |
12 VDC/PoE (802.3af) |
|
Power Consumption |
Basic: 1.7 W (12 VDC); 2.5 W (PoE) Maximum (H.265 + intelligence on+ DWDR + illuminator intensity): 5 W (12 VDC); 6.2W (PoE) |
|
Operating Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Operating Humidity |
≤95% |
|
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
|
Storage Humidity |
≤95% |
|
Casing |
Metal + Plastic |
|
Dimension |
197.9 mm × 80.2 mm × 76.2 mm |
|
Weight |
310g |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
19.674 x 78.8 x 7.45 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
0.35 kg |
|
Generic Name |
Bullet Camera |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
