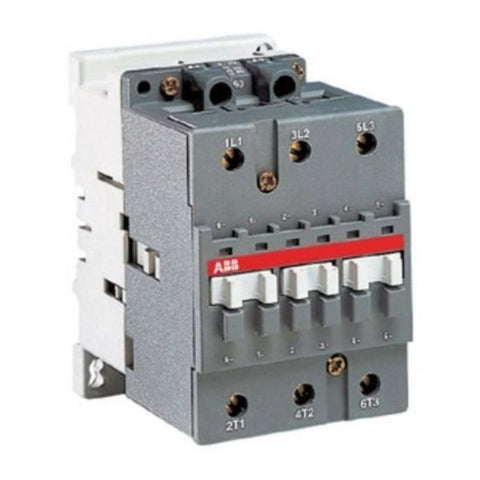

ABB AC Type Contactor Three Ploe UA110-30-10

ABB AC Type Contactor Three Pole UA110-30-10


₹ 11,689.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • A 3-phase Contactor suitable for Capacitor switching application. Maximum permissible peak current 30 times the nominal RMS current

  • Number of Main Contacts NO : 3

  • Number of Main Contacts NC : 0

  • Number of Auxiliary Contacts NO : 1

  • Number of Auxiliary Contacts NC : 1

  • Rated Operational Voltage : Main Circuit 1000 V

  • Rated Frequency (f) : Main Circuit 50/60 Hz

  • Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 160 A

  • Maximum Electrical Switching Frequency : 240 cycles per hour

  • Rated Impulse Withstand Voltage (Uimp) : Main Circuit 8 kV

  • Mechanical Durability : 10 million

  • Maximum Mechanical Switching Frequency : 3600 cycles per hour

  • Terminal Type : Cable Clamp

  • Product Net Width : 102.0 mm

  • Product Net Depth / Length : 123.5 mm

  • Product Net Height : 148.0 mm

  • Product Net Weight : 2.040 kg

Product Specification

Rated Voltage

Type

Product Id

24V

UA110-30-00

1SFL451022R8111

110V 50Hz / 110-120V 60Hz

UA110-30-00

1SFL451022R8411

220-230V 50Hz / 230-240V 60Hz

UA110-30-00

1SFL451022R8011

400-415V 50Hz / 415-440V 60Hz

UA110-30-00

1SFL451022R8611
