SKU # 1000022920

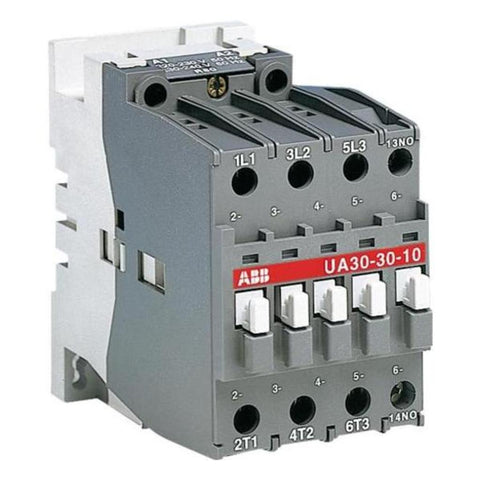

ABB AC Type Contactor Three Ploe UA30-30-10

ABB AC Type Contactor Three Pole UA30-30-10


₹ 2,675.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • UA30 3-pole contactors for capacitor switching, can be used for the switching of capacitor banks whose inrush current peaks are less than or equal to 100 times nominal rms current

  • The table below gives the permissible powers according to operational voltage and temperature close to the contactor

  • It also specifies the maximum peak current Î values accepted by the contactor

  • Number of Main Contacts NO : 3

  • Number of Main Contacts NC : 0

  • Number of Auxiliary Contacts NO : 1

  • Number of Auxiliary Contacts NC : 0

  • Rated Operational Voltage : Main Circuit 690 V

  • Rated Frequency (f) : Supply Circuit 50 Hz , Supply Circuit 60 Hz

  • Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-5-1, q = 40 °C 16 A

  • Rated Impulse Withstand Voltage (Uimp) : 8 kV

  • echanical Durability : 10 million

  • Maximum Mechanical Switching Frequency : 3600 cycles per hour

  • Terminal Type : Screw Terminals

  • Product Net Width : 54 mm

  • Product Net Depth / Length : 108.3 mm

  • Product Net Height : 90 mm

  • Product Net Weight : 0.71 kg

Product Specification

Rated Voltage

Type

Product Id

24V

UA30-30-10

1SBL281022R8110

110V 50Hz / 110-120V 60Hz

UA30-30-10

1SBL281022R8410

220-230V 50Hz / 230-240V 60Hz

UA30-30-10

1SBL281022R8010

400-415V 50Hz / 415-440V 60Hz

UA30-30-10

1SBL281022R8610
