ABB AC Type Contactor Three Ploe UA50-30-10

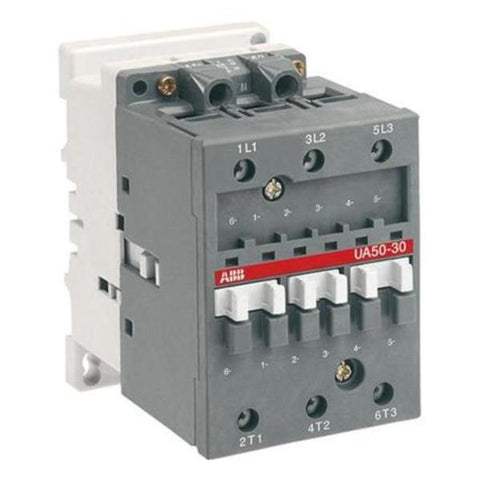

ABB AC Type Contactor Three Pole UA50-30-10


₹ 7,370.00

Quantity

Pack Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • UA50 3-pole contactors for capacitor switching, can be used for the switching of capacitor banks whose inrush current peaks are less than or equal to 100 times nominal rms current

  • The table below gives the permissible powers according to operational voltage and temperature close to the contactor

  • It also specifies the maximum peak current Î values accepted by the contactor

  • Number of Main Contacts NO : 3

  • Number of Main Contacts NC : 0

  • Number of Auxiliary Contacts NO : 0

  • Number of Auxiliary Contacts NC : 0

  • Rated Operational Voltage : Main Circuit 690 V

  • Rated Impulse Withstand Voltage (Uimp) : 8 kV

  • Mechanical Durability : 10 million

  • Maximum Mechanical Switching Frequency : 3600 cycles per hour

  • Terminal Type : Screw Terminals

  • Product Net Width : 70 mm

  • Product Net Depth / Length : 108 mm

  • Product Net Height : 110 mm

  • Product Net Weight : 1.16 kg

Product Specification

Rated Voltage

Type

Product Id

24V

UA50-30-10

1SBL351022R8100

110V 50Hz / 110-120V 60Hz

UA50-30-10

1SBL351022R8400

220-230V 50Hz / 230-240V 60Hz

UA50-30-10

1SBL351022R8000

400-415V 50Hz / 415-440V 60Hz

UA50-30-10

1SBL351022R8600


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

3 Pole Contactors

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
