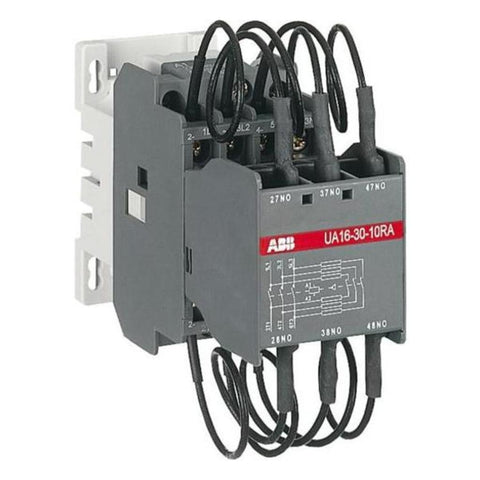

ABB AC Type Contactor Three Pole UA16-30-10RA

ABB AC Type Contactor Three Pole UA16-30-10RA


₹ 1,564.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • UA16..RA 3-pole contactors for capacitor switching, can be used in installations in which the peak current far exceeds 100 times nominal rms current

  • The contactors are delivered complete with their damping resistors and must be used without additional inductances (see table below)

  • The capacitors must be discharged (maximum residual voltage at terminals ≤ 50 V) before being re-energized when the contactors are making

  • Their electrical durability is 250 000 operating cycles for Ue < 500 V and 100 000 operating cycles for 500 V ≤ Ue ≤ 690 V

  • Number of Main Contacts NO : 3

  • Number of Main Contacts NC : 0

  • Number of Auxiliary Contacts NO : 1

  • Number of Auxiliary Contacts NC : 0

  • Rated Operational Voltage : Main Circuit 690 V , Auxiliary Circuit 690 V

  • Rated Frequency (f) : Supply Circuit 50 Hz , Supply Circuit 60 Hz

  • Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-5-1, q = 40 °C 16 A

  • Maximum Electrical Switching Frequency : 240 cycles per hour

  • Rated Impulse Withstand Voltage (Uimp) : 8 kV

  • Rated Control Circuit Voltage (Uc) : 50 Hz 24 V , 60 Hz 24 V

  • Terminal Type : Screw Terminals

  • Number of Main Contacts NO : 3

  • Number of Main Contacts NC : 0

  • Number of Auxiliary Contacts NO : 1

  • Number of Auxiliary Contacts NC : 0

  • Product Net Width : 44 mm

  • Product Net Depth / Length : 107 mm

  • Product Net Height : 120 mm

  • Product Net Weight : 0.46 kg

Product Specification

Type

Product Id

Rated Voltage

UA16-30-10RA

1SBL181024R8110

24V 50Hz / 24V 50Hz

UA16-30-10RA

1SBL181024R8410

110V 50Hz / 110-120V 60Hz

UA16-30-10RA

1SBL181024R8010

220-230V 50Hz / 230-240V 60Hz

UA16-30-10RA

1SBL181024R8610

400-415V 50Hz / 415-440V 60Hz
