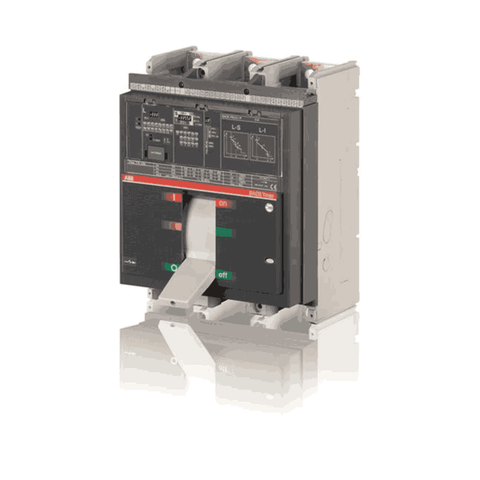

ABB MCCB 1600A 70KA 415V Three Pole T7H 1600 PR231
ABB MCCB 1600A 70KA 415V Three Pole T7H 1600 PR231 1982174789689
PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
C.Breaker Tmax T7h 1600 Fixed Three-Pole With Front Terminals And Stored Energy Operating Mechanism And Solid-State Release In Ac Pr231/P-Ls/I R 1600
-
Product Net Width : 210 mm
-
Product Net Height : 268 mm
-
Product Net Depth / Length : 178mm
-
Product Net Weight : 11kg
-
Electrical Durability : 2000 cycle, 60 cycles per hour
-
Mechanical Durability : 10000 cycle,60 cycles per hour
-
Number of Poles : 3
-
Power Loss : at Rated Operating Conditions per Pole 77 W
-
Product Main Type : SACE Tmax T
-
Product Name : Moulded Case Circuit Breaker
-
Product Type : CB
-
Rated Current (In) Main Circuit : 1600 A
-
Rated Impulse Withstand Voltage (Uimp) : 8 kV
-
Rated Insulation Voltage (Ui) : 1000 V
-
Rated Operational Voltage : 690 V AC
-
Rated Service Short-Circuit Breaking Capacity (Ics): (220 V AC) 85 kA,(230 V AC) 85 kA,(380 V AC) 50 kA,(400 V AC) 50 kA,(415 V AC) 50 kA,(440 V AC) 50 kA,(500 V AC) 40 kA,(690 V AC) 30 kA
-
Rated Short-time Withstand Current (Icw)for 1 s 20 kA
-
Rated Ultimate Short-Circuit Breaking Capacity (Icu):(220 V AC) 85 kA,(230 V AC) 85 kA,(380 V AC) 50 kA,(400 V AC) 50 kA,(415 V AC) 50 kA,(440 V AC) 50 kA,(500 V AC) 40 kA,(690 V AC) 30 kA
-
Rated Uninterrupted Current (Iu) : 1600 A
-
Standards : IEC
-
Terminal Connection Type : Fixed Circuit-Breakers Front
Product Specification
Rated current |
Type |
Product id |
1600 A |
1SDA063042R1
|
T7H 1600 PR231/P LS/I In=1600A 3p F F M
|
1600 A |
1SDA063044R1
|
T7H 1600 PR331/P LSIG In=1600A 3p F F M
|
1600 A |
1SDA063047R1
|
T7H 1600 PR332/P LSIG In=1600A 3p F F M
|
1600 A |
1SDA063050R1
|
T7H 1600 PR231/P LS/I In=1600A 4p F F M
|
1600 A |
1SDA063052R1
|
T7H 1600 PR331/P LSIG In=1600A 4p F F M
|
1600 A |
1SDA063055R1
|
T7H 1600 PR332/P LSIG In=1600A 4p F F M
|
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
3 Pole MCCB |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
