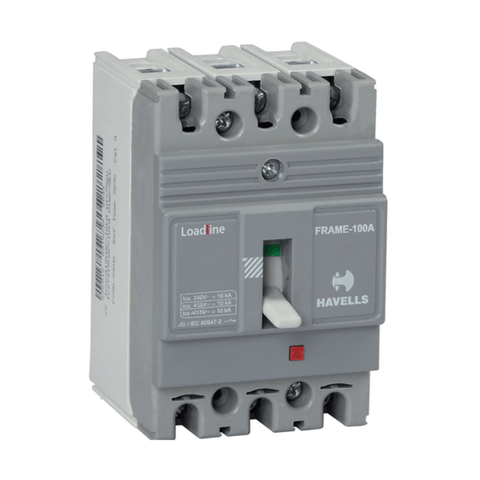

Havells Fixed Thermal and Magnetic Mccb with Three Pole GN Frame 16 KA

Havells Fixed Thermal and Magnetic Mccb with Three Pole GN Frame 16 KA


₹ 3,930.00

Quantity

Pack Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

Overload Setting is Fixed and Short Circuit Setting is minimum 10 times of Rated Current.

Compact Size & Double Insulation

Space saving in the Panel and has the conductive path insulated with double shield i.e. Cover & Facia

Suitable for Switch Disconnector Purpose

Can be used as an Isolator

In 4Pwsn version, Neutral makes first & breaks last

Provision for addressing Residual Current in the Circuit.

Provision of Push to tip button

It is an alternate means to Trip the Breaker and also helps in checking the health of the Breaker.

Uniform front Escutcheon plate

Common Door Cut-out Facility provided lending Uniformity

Positive dolly position indication

Depicts the ON/OFF status of the breaker

Suitable for DC application

Offers choice of system usage

Wide range of accessories available

Allows precise monitoring & control of circuit with the help of varied Internal & External Accessories

Product Sprcification

Standard conformity: IEC 60947-2/IS:13947-2

Rated operational voltage: 500V AC

Rated Insulation Voltage: 750V AC

Type of Release: Thermomagnetic

Utilisation Category: A

Rated frequency: 50/60Hz

Ambient temp: 400C (500C on request)

Operating altitude: 2000 metres

Humidity: 0 - 90%

Rated impulse voltage: 8 kV

Rating Range: 25A - 160A

Type of Release: Fixed Type

No. of Poles: Three

Breaking Capacity: Icu = 18kA, Ics = 100% of Icu

Note: # Extended Terminals:In G-Frame from (80A to 160A)

Breaking Capacity Icu at 415V (kA)

Current Rating (A)

Frame

Cat. No.


16

25


GN

IHLGNT0025

32

IHLGNT0032

40

IHLGNT0040

50

IHLGNT0050

63

IHLGNT0063

80

IHLGNT0080 #

100

IHLGNT0100 #

125

IHLGNT0125 #

150

IHLGNT0150 #

160

IHLGNT0160 #


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

3 Pole MCCB

Manufacturer Details

Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com

Packer Details

Havells India Ltd. Office: QRG Towers, 2D, Sector-126, Expressway, Noida-201304 (U.P), Phone : +91-120-3331000 Email: marketing@havells.com

Country of Origin

India
