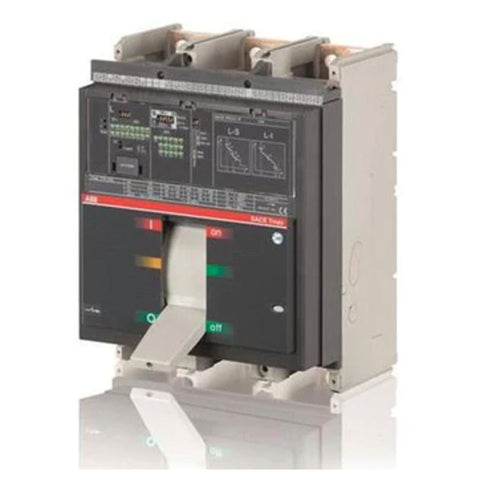

ABB TMax MCCB 1600A 70KA 415 V Three-Pole – T7H 1600 3p


ABB
Available



₹ 89,354.00

Check Pincode Availability

Product Description

  • C.Breaker Tmax T7H 1600 Fixed Three-Pole With Front Terminals And Lever Operating Mechanism And Solid-State Release In Ac Pr231/P-Ls/I R 1600

  • Moulded-case circuit-breakers can be used in low voltage civil and industrial installations with 1 to 3200 A operating current.

  • A stored energy motor can be used to open and close the circuit-breaker on which it is installed.

  • IEC Standard

  • Circuit Breaker Type to be Associated:Power distribution

  • Product Net Width : 210 mm

  • Product Net Height : 268 mm

  • Product Net Depth / Length : 154 mm

  • Product Net Weight : 9.7 kg

  • Number of Poles : 3

  • Product Main Type : SACE Tmax T

  • Product Name : Moulded Case Circuit Breaker

  • Product Type : CB

  • Version : F

  • Electrical Durability : 2000 cycle , 60 cycles per hour

  • Mechanical Durability : 10000 cycle , 60 cycles per hour

  • Terminal Connection Type : Fixed Circuit-Breakers Front

Product Specification

Rated current

Type

Product id

1600 A

1SDA063026R1


T7H 1600 PR231/P LS/I In=1600A 3p F F

1600 A

1SDA063028R1


T7H 1600 PR331/P LSIG In=1600A 3p F F

1600 A

1SDA063031R1


T7H 1600 PR332/P LSIG In=1600A 3p F F
