LAST SOLD AT ₹ 50,236.00

SKU # 1000013165

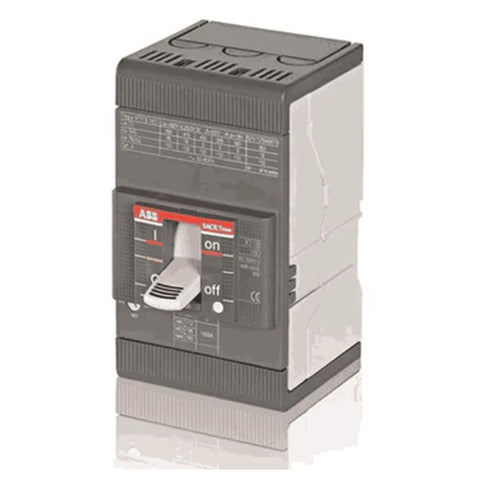

ABB XTMax MCCB 40-250A 70KA 415 V Three Pole Ekip E-LSIG  XT4

ABB XTMax MCCB 40-250A 70KA 415 V Three Pole Ekip E-LSIG XT4

Visit the ABB Store

₹ 50,236.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • C.Breaker Tmax XT4H 160 Fixed Three-Pole With Front Terminals And Solid-State Release In Ac Ekip-E-Lsig

  • The trip unit Ekip E-LSIG provides -in addition to the traditional circuit protection functions L, S, I and G- also Over Voltage and Under Voltage protections

  • Ekip E-LSIG can perform the measurements of the main electrical quantities and of the advanced Power quality indicators such as Power factor, Frequency and peak factor, Energy, Power Harmonic analysis and THD

  • Product Name : Moulded Case Circuit Breaker

  • Product Main Type : SACE Tmax XT

  • Product Type : CB

  • Product Net Width : 105 mm

  • Product Net Height : 160 mm

  • Product Net Depth / Length : 82.5 mm

  • Product Net Weight : 2.5 kg

  • Number of Poles : 3

  • Version : F

  • Release Type : EL

  • Rated Voltage : 690 V

  • Rated Insulation Voltage (Ui) : 1000 V

  • Rated Frequency (f): 50 / 60 Hz

  • Electrical Durability : 8000 cycle , 120 cycles per hour

  • Mechanical Durability :Nr. Operations 240 cycles per hour , Nr. Operations 25000 cycle

  • Terminal Connection Type : Fixed Circuit-Breakers Front

Product Specification

Rated current

Type

Product id

40 A

1SDA069621R1

XT4H160EkipE-LSIGIn=40A3pFF

63 A

1SDA069622R1

XT4H160EkipE-LSIGIn=63A3pFF

100 A

1SDA069623R1

XT4H160EkipE-LSIGIn=100A3pFF

160 A

1SDA069624R1

XT4H160EkipE-LSIGIn=160A3pFF

250 A

1SDA069625R1

XT4H250EkipE-LSIGIn=250A3pFF


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

3 Pole MCCB

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
