Available

SKU # 1000005942

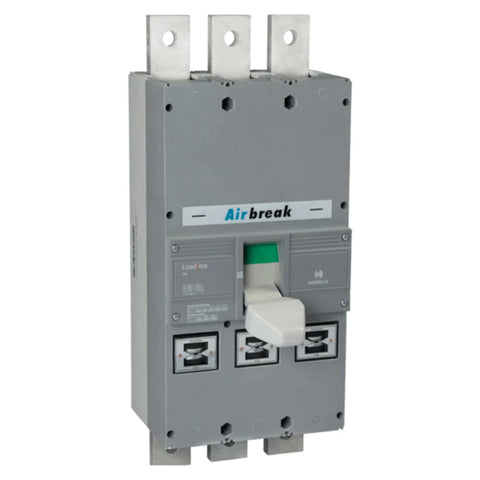

Havells Adjustable Thermal and Magnetic Mccb Three Pole DN Frame 50kA

Havells Adjustable Thermal and Magnetic Mccb Three Pole DN Frame 50kA


₹ 77,173.00

Quantity

Min Qty : 1



Delivery Availability

 Estimated Dispatch In 14-21 Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

Overload Setting is Polewise Adjustable (70-100)% & Short Circuit Settings is also Polewise Adjustable (4-10)times of Rated Current.

Compact Size & Double Insulation

  • Space saving in the Panel and has the conductive path insulated with double shield i.e. Cover & Facia

Suitable for Switch Disconnector Purpose

  • Can be used as an Isolator

Provision of Push to tip button

  • It is an alternate means to Trip the Breaker and also helps in checking the health of the Breaker.

Uniform front Escutcheon plate

  • Common Door Cut-out Facility provided lending Uniformity

Positive dolly position indication

  • Depicts the ON/OFF status of the breaker

Suitable for DC application

  • Offers choice of system usage

Wide range of accessories available

  • Allows precise monitoring & control of circuit with the help of varied Internal & External Accessories

Separate Main & Arching contacts

  • Arching Contacts makes first and breaks last thereby lending longer life to the main contacts.

Product Specifications

  • Ref. Standard: IS/ IEC 60947-2

  • Rated operational voltage: 500V AC

  • Rated Insulation Voltage: 750V AC

  • Type of Release: Thermomagnetic

  • Utilisation Category: A

  • Rated frequency: 50/60Hz

  • Ambient temp: 400C (500C on request)

  • Operating altitude: 2000 metres

  • Humidity: 0 - 90%

  • Rated impulse voltage: 8 kV

  • Rating Range: 1000A - 1600A

  • Type of Release: Adjustable Type

  • No. of Poles: Three

  • Breaking Capacity: Icu = 50kA, Ics = 75% of Icu

Note: # All MCCB’s are with extended terminals.

Breaking Capacity Icu at 415 (kA)

Current Rating (A)

Frame

Cat No.


50

1000


DN

IHLDNT1000 #

1250

IHLDNT1250 #

1600

IHLDNT1600 #
