SKU # 1000017146

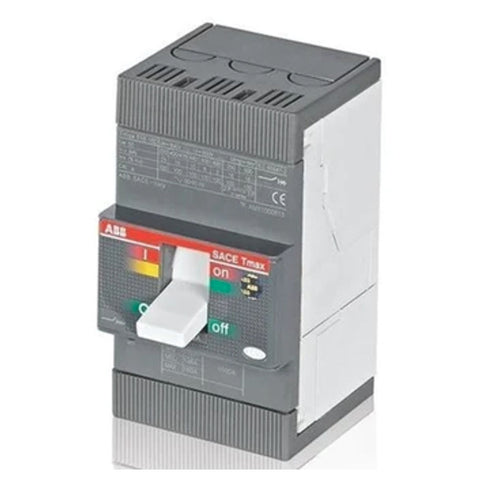

ABB Tmax MCCB 16-63A Three Pole T1B 160
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
C.Breaker Tmax T1B 160 Fixed Three-Pole With Front Terminals For Cable Cu 70mm2 And Thermomagnetic Release Tmd
-
Product Net Width : 76 mm
-
Product Net Height : 130 mm
-
Product Net Depth : 70 mm
-
Product Net Weight : 1 kg
-
Electrical Durability : 8000 cycle , 120 cycles per hour
-
IIT Publishing Status : Level 0 - Information enabled
-
Mechanical Durability : 25000 cycle , 240 cycles per hour
-
Number of Poles : 3
-
Power Loss : at Rated Operating Conditions per Pole 2,1 W
-
Product Main Type : SACE Tmax T
-
Product Name : Moulded Case Circuit Breaker
-
Product Type : CB
-
Rated Impulse Withstand Voltage (Uimp) : 8 kV
-
Rated Insulation Voltage (Ui) : 800 V
-
Rated Operational Voltage : 690 V AC , 500 V DC
-
Rated Uninterrupted Current (Iu) : 160 A
-
Release Type : TM
-
Standards : IEC 60947
-
Sub-type : T1
-
Suitable For : T1
-
Test Voltage at Industrial Frequency for 1 Minute : 3000 V
-
Test Voltage Max (Utest) : 3000 V
-
Version : F
Product Specification
|
Rated Current (A) |
Type |
Product Id |
|
32 |
T1B 160 TMD32-630 3p F FC Cu (1×70mm2) |
1SDA050873R1 |
|
16 |
T1B 160 TMD16-630 3p F FC Cu (1×70mm2) |
1SDA050870R1 |
|
80 |
T1B 160 TMD80-800 3p F FC Cu (1×70mm2) |
1SDA050877R1 |
|
25 |
T1B 160 TMD25-630 3p F FC Cu (1×70mm2) |
1SDA050872R1 |
|
50 |
T1B 160 TMD 50-630 3P F FC; TMAX Breaker |
1SDA050875R1 |
|
63 |
T1B 160 TMD63-630 3p F FC Cu (1×70mm2) |
1SDA050876R1 |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
3 Pole MCCB |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
