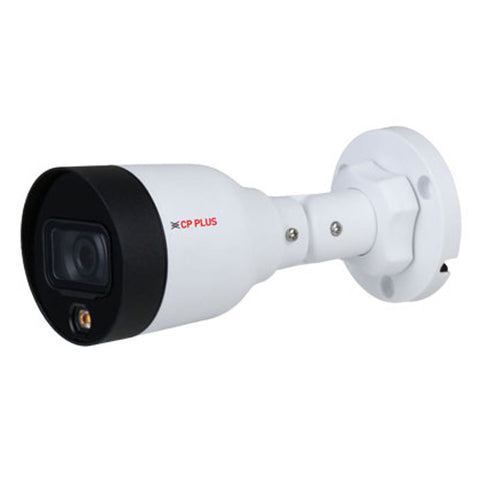

CP Plus 4 MP Full Color Guard+ Network Bullet Camera CP-UNC-TA41L2C-GP
CP Plus 4 MP Full Color Guard+ Network Bullet Camera CP-UNC-TA41L2C-GP 7829363982530PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
1/3” 4MP PS CMOS Image Sensor(0.84667cm)
-
Maximum Output 4 MP (2560 × 1440)@25/30fps
-
Instastream; SMART H.264+ and H.264 dual-stream encoding
-
WDR(120dB), Day/Night (ICR), 3D-DNR,ROI, AWB, AGC, BLC, HLC
-
3.6mm fixed lens (2.8mm optional)
-
Built in Mic
-
Illuminator Range of 15 Mtrs, IP67, PoE
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
-
With features of simple installation, easy operation, and high performance-cost ratio, Guard+ Series of Network Camera is applicable to small and medi-umsized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sizedenterprises
-
This product uses the latest PoE technology to trouble- shoot the occurrence of any issues in the system making it easier to use
-
With the help of this technology, your camera now only consumes energy directly from the power supply and doesn’t require any mid-way switches
-
When a scene is partly dark and partly bright, that is the dy- namic range that distorts images due to this difference in the lighting
-
WDR technology provides you balanced lighting for a clear and vivid image throughout the day
-
WDR technology can be installed at entry/exit points of any building structure, jew-elry shops, outdoor location among so many other places
-
With high-performance sensor and large aperture lens,Guard+ Series of Network Camera Full-color technology can display clear colorful image in the environment of ultra-low illumi-nance
-
With this photosensitivity technology, the camera can capture more available light, and display more colorful image details
-
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
-
The KVMS Pro is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is re-leased with the surveillance hardware and exclusively sup- ports CP PLUS devices
-
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/NVRs and Video Door Phones, the CP PLUS gCMOB/iCMOB application offers a host
of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way
Product Specification
Brand | CP Plus |
Product Type | Bullet Camera |
Product Code | CP-UNC-TA41L2C-GP |
Image Sensor | 1/3” 4MP Progressive scan CMOS(0.84667cm) |
Minimum Illumination | 0.008 lux@F1.6 |
Effective Pixels | 2560 (H) × 1440 (V) |
Lens | 3.6mm (2.8mm Optional) |
Gain Control (AGC) | Auto/Manual |
ICR | Color/B/W |
Lens Type | Fixed |
Privacy Mask | 4 Area |
Maximum Aperture | F1.6 |
S/N Ratio | More than 56dB |
DORI Distance | 3.6 mm: 85.4m (detect) 34.2m (Observe) 17.1m (Recognize) 8.5m (Identify) 2.8 mm: 63.6m (detect) 25.4m (Observe) 12.7m (Recognize) 6.4m (Identify) |
Shutter Speed | Auto/Manual, 1/3~1/100000s |
Mount Type | M12 |
Angle Of View | H: 95°, V: 52°, D: 114°, H: 78°, V: 41°; D: 94° |
ROI | Yes(4 Zone) |
Frame Rate | Main stream: 2560 × 1440@ (1–25/30 fps) sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps) The values above are the Maximum frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
White Balance | Auto, natural, street lamp; outdoor; manual; regional custom |
Motion Detection | Off / On (4 Zone, Rectangle) |
Audio | Built in Mic |
Back Light Compensation | BLC / HLC / WDR(120dB) |
Audio Compression | G.711a; G.711Mu; G.726; PCM |
Video Compression | H.265, H.264+, H.264B, H.264, MJPEG (only supports by sub stream) |
SDK And API | Supported |
Encode Strategy | Instastream |
Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour, ONVIF (Profile S, Profile T), CGI, InstaOn, Milestone |
Cyber Security | Configuration encryption, Trusted execution, Digest, Security logs, WSSE, Account lockout, syslog, Video encryption, 802.1x, IP/MAC filtering, HTTPS |
Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio exception; voltage detection; security exception |
Bit Rate | H.264: 32 kbps–6144 kbps, H.265: 32 kbps–6144 kbps |
Illumination Distance | Illumination Distance 15 Mtr |
Operating Temperature | -40 °C to +55°C (–40 °F to +131 °F) |
Storage Temperature | -40 °C to +60 °C (–40 °F to +140 °F) |
Smart Phone | iPhone, iPad, Android Phone |
Power Source | 12V DC/PoE (802.3af) |
Power Consumption | Basic: 2.1 W (12 VDC); 3 W (PoE) Maximum (WDR+H.265+ warm light intensity): 4.3 W (12 VDC); 5.3 W (PoE) |
Ethernet | RJ-45 (10/100Base-T) |
Casing | Metal + Plastic |
Weatherproof Standard | IP67 |
Dimension | 162.6 × 70 × 70 mm |
Weight | 0.22 kg |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H | 9.7 x 9.5 x 6 |
Unit Of Measurement | 1 Piece |
Weight | 0.319 kg |
Generic Type | Bullet Camera |
Manufacturer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Packer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
Country Of Origin | India |
