SKU # 1000129230

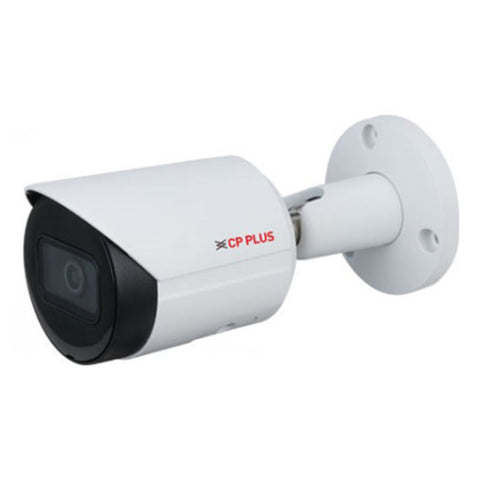

CP Plus 8 MP WDR IR Network Bullet Camera 30 Mtr UNC-TB81L3-MDS

₹ 9,730.00

Quantity



Pack Qty : 1

Delivery Availability

Estimated Dispatch Within 2 Days

Offers and Coupons

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments

Product Description

1/2.7” 8MP CMOS image sensor (0.9407cm)
Maximum 8MP (3840 × 2160)@15fps, and supports 2688×1520 (2688 × 1520)@25/30fps
Support Starlight Technology
Instastream and H.264+ Dual Stream Coding
WDR(120dB), Day/Night (ICR), 3D-DNR, ROI, AWB, AGC, HLC, BLC
3.6mm fixed lens (2.8mm optional)
Built-in IR LED, IR Range of 30 Mtrs, IP67, Micro SD Card, PoE
Mobile Software: iCMOB, gCMOB
CMS Software: KVMS Pro

Product Specification

Brand	CP Plus
Product Type	Bullet Camera
Product Code	CP- UNC-TB81L3-MDS
Image Sensor	1/2.7” 8MP PS CMOS Image Sensor (0.9407cm)
Effective Pixels	3840 (H) × 2160 (V)
Minimum Illumination	0.009 Lux@F1.6
S/N Ratio	>56dB
Lens	3.6mm fixed lens (2.8mm optional)
Angle Of View	3.6mm: H: 87.0°, V: 47.0°, D: 104.0° 2.8mm: H: 105.0°, V: 56.0°, D: 125.0°
White Balance	Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control (AGC)	Auto/Manual
Back Light Compensation	BLC/ HLC/ WDR(120dB)
Video Compression	Instastream; H.265; H.264+; H.264; H.264B; MJPEG (only supported by sub stream) 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Frame Rate	Main stream: 3840 × 2160 (1 fps–15 fps) 2688 × 1520 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps)
Motion Detection	OFF/ON (4 areas, rectangular)
Privacy Mask	4 Areas
Mirror	Yes
ICR	Auto (ICR)/Color/B/W
ROI	Yes (4 areas)
Bit Rate	H.264: 32 kbps–8192 kbps , H.265: 12 kbps–8192 kbps
IVS	Intrusion; tripwire
Event Trigger	Abnormality detection: Motion detection, video tempering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour; ONVIF (Profile S/ Profile G/ Profile T); CGI; InstaOn; Milestone; Genetec
Ethernet	RJ-45 (10/100Base-T)
User Account	20 Users
IR	IR Range of 30 Mtr
Smart Phone	iPhone, iPad, Android Phone
Micro SD	FTP; SFTP; Micro SD card (Maximum 512GB); NAS
Operating Temperature	40°C to +60°C (-40°F to +140°F)
Operating Humidity	≤95%
Storage Temperature	-40°C to +60°C (-40°F to +140°F
Storage Humidity	≤95%
Power Source	12V DC/PoE(802.3af)
Power Consumption	<5.5W
Weatherproof Standard	IP67
Casing	Metal
Dimension	166.2 × Φ70 mm
Weight	0.48 kg
Warranty	As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H	9.7 x 9.5 x 6
Unit Of Measurement	1 Piece
Weight	0.319 kg
Generic Type	Bullet Camera
Manufacturer Details	Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526
Packer Details	Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526
Country Of Origin	India
